How to Fill Out Form U-2

Form U-2 at a glance

What it is: Form U-2 is the Manufacturer's Partial Data Report, a part of a pressure vessel fabricated by one manufacturer for another manufacturer.

Who signs: The Manufacturer's Representative signs, and the Authorized Inspector signs.

Enter in 1. Manufactured and certified by the name and address of the Manufacturer of A Part of a Pressure Vessel Fabricated by One Manufacturer for Another Manufacturer, as required by the provisions of the ASME Boiler and Pressure Vessel Code Rules, Section VIII, Division 1.

A filled-in Form U-2 example: a shell made for another manufacturer

Form U-2 example filled out, example: a shell made for another manufacturer
Example Vessel Works makes a shell for Sample Process Co. The part is a shell of one course with an overall length of 96. The picture shows page 1 only, and every value in it is made up. The shell has no body flanges, so Body Flanges on Shells and on Heads stays empty. Heads is left blank because the part is only a shell. Type of jacket is left blank because the shell has no jacket. Nothing goes in Tubesheet and tubes because the part has no tube sections. The sizes are in inches, pressure in PSI and temperature in F, with full examination of the seams.

How to fill out Form U-2, box by box

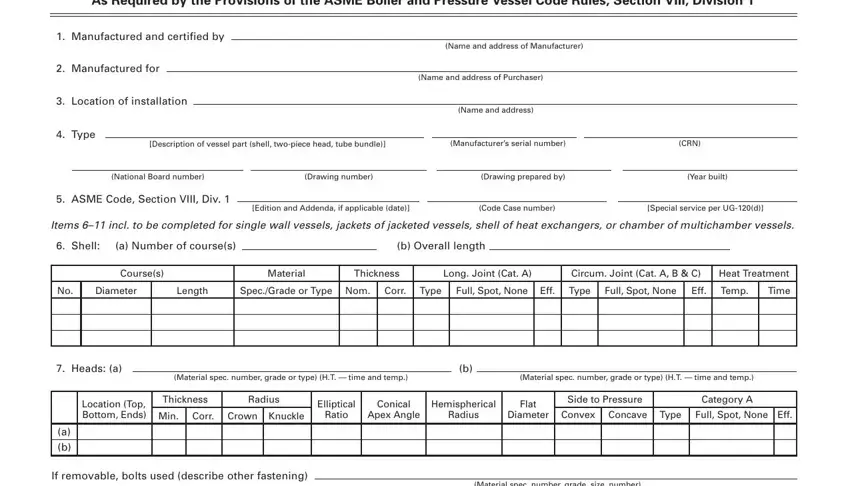

Manufactured and certified by, manufactured for and location of installation

Form U-2 example filled out, manufactured and certified by, manufactured for and location of installation

In 1. Manufactured and certified by, enter the Name and address of Manufacturer.

In 2. Manufactured for, enter the Name and address of Purchaser.

In 3. Location of installation, enter the Name and address.

Type

Form U-2 example filled out, type

In 4. Type, enter the Description of vessel part (shell, two-piece head, tube bundle), the Manufacturer's serial number and the CRN.

Also enter the National Board number, the Drawing number, the Year built and the Drawing prepared by.

ASME Code, Section VIII, Div. 1

Form U-2 example filled out, aSME Code, Section VIII, Div. 1

In 5. ASME Code, Section VIII, Div. 1, enter the Code Case number, the Special service per UG-120(d) and the Edition and Addenda, if applicable (date).

Shell

Form U-2 example filled out, shell

Items 6-11 incl. are to be completed for single wall vessels, jackets of jacketed vessels, shell of heat exchangers, or chamber of multichamber vessels.

In 6. Shell, enter (a) Number of course(s) and (b) Overall length.

For each course, enter the Diameter, Length, Material Spec./Grade or Type, Thickness Nom. and Corr., the Long. Joint (Cat. A) Type, Eff. and Full, Spot, None, the Circum. Joint (Cat. A, B & C) Type, Eff. and Full, Spot, None, and the Heat Treatment Temp. and Time.

Body Flanges on Shells and on Heads

Form U-2 example filled out, body Flanges on Shells and on Heads

For Body Flanges on Shells and on Heads, enter the No., Type, ID, OD, Flange Thk, Min Hub Thk, Material, How Attached and Location, and for Bolting the Num & Size, Bolting Material, Washer (OD, ID, thk) and Washer Material.

Heads

Form U-2 example filled out, heads

In 7. Heads, enter for (a) and (b) the Material spec. number, grade or type and the H.T. - time and temp.

For each, enter the Location (Top, Bottom, Ends), Thickness Min. and Corr., Radius Crown and Knuckle, Elliptical Ratio, Conical Apex Angle, Hemis. Radius, Flat Diameter, Convex or Concave Side to Pressure, and Category A Type, Eff. and Full, Spot, None.

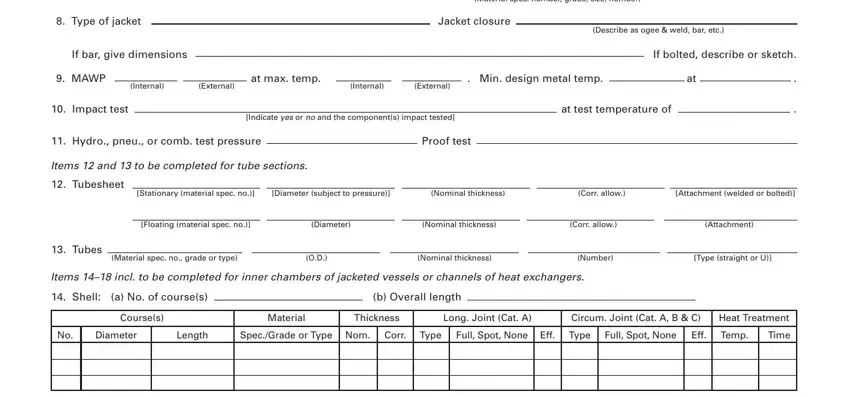

Type of jacket

Form U-2 example filled out, type of jacket

In 8. Type of jacket, enter the Jacket closure (Describe as ogee and weld, bar, etc.) only if there is a jacket.

If bar, give dimensions. If bolted, describe or sketch.

MAWP, impact test and test pressure

Form U-2 example filled out, mAWP, impact test and test pressure

In 9., enter the MAWP (Internal) and (External) and the max. temp. (Internal) and (External), then the Min. design metal temp. at.

In 10. Impact test at test temperature of, Indicate yes or no and the component(s) impact tested.

In 11. Hydro., pneu., or comb. test pressure, enter the pressure and the Proof test.

Tubesheet and tubes

Form U-2 example filled out, tubesheet and tubes

Items 12 and 13 are to be completed for tube sections.

In 12. Tubesheet, enter the Stationary (material spec. no.), Diameter (subject to press.), Nominal thickness, Attachment (welded or bolted) and Corr. allow., then the Floating (material spec. no.), Diameter, Nominal thickness, Attachment and Corr. allow.

In 13. Tubes, enter the Material spec. no., grade or type, O.D., Nominal thickness, Number and Type (straight or U).

More rules for Form U-2

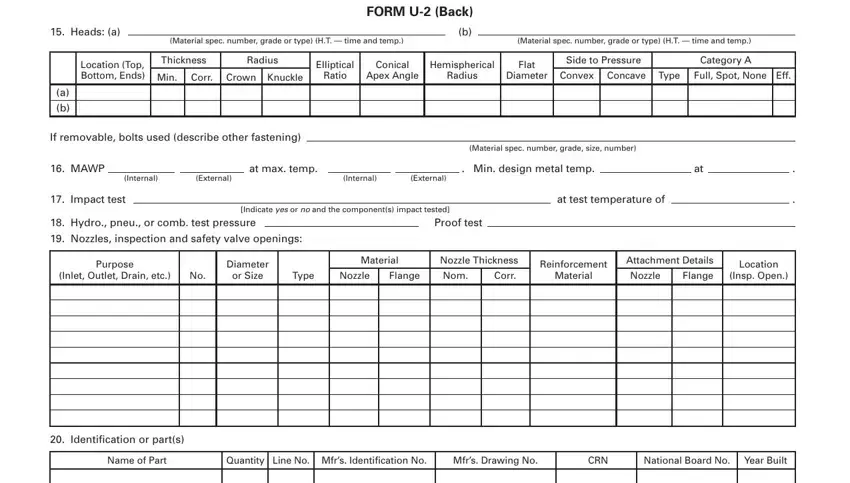

Items 14-18 incl. are to be completed for inner chambers of jacketed vessels or channels of heat exchangers.

In 14. Shell, enter (a) No. of course(s) and (b) Overall length.

In 19. Nozzles, inspection, and safety valve openings, enter the Purpose (Inlet, Outlet, Drain, etc.), No., Diameter or Size, Type, Material Nozzle and Flange, Thickness Nom. and Corr., Reinforcement Material, Attachment Details Nozzle and Flange, and Location (Insp. Open.).

In 20. Identification of part(s), enter the Name of Part, Mfr's. Identification No., Mfr's. Drawing No., National Board No., CRN, Year Built, Quantity and Line No.

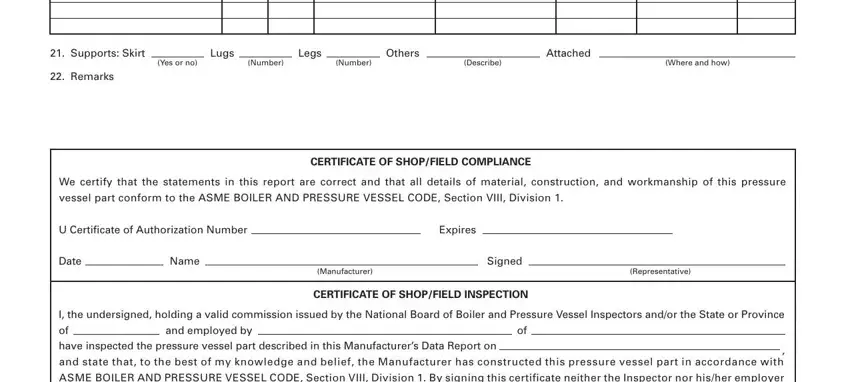

In 21. Supports, enter Skirt (Yes or no), Lugs (Number), Legs (Number), Others (Describe) and Attached (Where and how).

Use 22. Remarks for remarks.

In the Certificate of Shop/Field Inspection: I, the undersigned, holding a valid commission issued by the National Board of Boiler and Pressure Vessel Inspectors and employed by, have inspected the pressure vessel part described in this Manufacturer's Data Report on.

and state that, to the best of my knowledge and belief, the Manufacturer has constructed this pressure vessel part in accordance with ASME Boiler and Pressure Vessel Code, Section VIII, Division 1. By signing this certificate neither the Inspector nor his/her employer makes any warranty, expressed or implied, concerning the pressure vessel part described in this Manufacturer's Data Report. Furthermore, neither the Inspector nor his/her employer shall be liable in any manner for any personal injury or property damage or a loss of any kind arising from or connected with this inspection.

Common questions about Form U-2

Who signs it?

The Manufacturer's Representative signs: enter the U or PRT Certificate of Authorization number, Expires, the Date and the Name, then sign in Signed (Representative) (Manufacturer). The Authorized Inspector signs: enter the Date, sign in Signed and enter the Commissions (National Board Authorized Inspector Commission number).

What am I certifying when I sign?

In the Certificate of Shop/Field Compliance, the Manufacturer certifies that the statements in this report are correct and that all details of material, construction, and workmanship of this pressure vessel part conform to the ASME Boiler and Pressure Vessel Code, Section VIII, Division 1.

Sources

[1] Form U-2 (07/17), Manufacturer's Partial Data Report (the Official source link on this page).

ASME U2 Partial Data Report Form PDF Details

The U2 Partial Data Report captures manufacturing and certification details for pressure vessel components built by one manufacturer for completion by another. It covers all elements required under ASME BPVC Section VIII, Division 1, including materials, design specifications, fabrication methods, and test records.

Who Must Complete This Form

Any manufacturer holding an ASME Certificate of Authorization who produces a pressure vessel part for a second manufacturer must submit this partial data report. Both parties are identified on the form. The installation location, serial numbers, and certification stamps are recorded to ensure full traceability throughout the component's service life.

Key Sections and Data Fields

The form documents shells, heads, and tube bundles. It requires material grade, wall thickness, heat treatment status, and joint efficiency for each component. Jacket types, jacket closure details, and design pressures for both internal and external service are included. Nozzle sizes, connection types, and support configurations, including skirts, lugs, and legs, round out the structural data.

Testing and Certification Requirements

Fabricators must record impact test results and hydrostatic or pneumatic test data. The minimum design metal temperature and Maximum Allowable Working Pressure (MAWP) are calculated and certified at this stage. An authorized inspector signs the Certificate of Shop or Field Compliance to confirm all work meets ASME Code requirements. A Pressure Test Report may be filed alongside this report to document test conditions in greater detail.

National Board Registration and Fees

Many jurisdictions require registration of pressure vessel components with the National Board of Boiler and Pressure Vessel Inspectors after fabrication. Registration carries a fee based on the vessel's design pressure, volume, and classification. A separate annual fee may apply to maintain the manufacturer's listing on the National Board registry. The completed U2 form serves as the primary supporting document for this registration. Earning the NB mark demonstrates compliance with accepted safety standards and simplifies future inspections and repairs.

Fabricators who use certified welders should maintain an AWS Welder Qualification Record to document welding procedures used during fabrication. After completion, a Certificate of Compliance may be required by the purchasing manufacturer before the component is accepted for final assembly.
