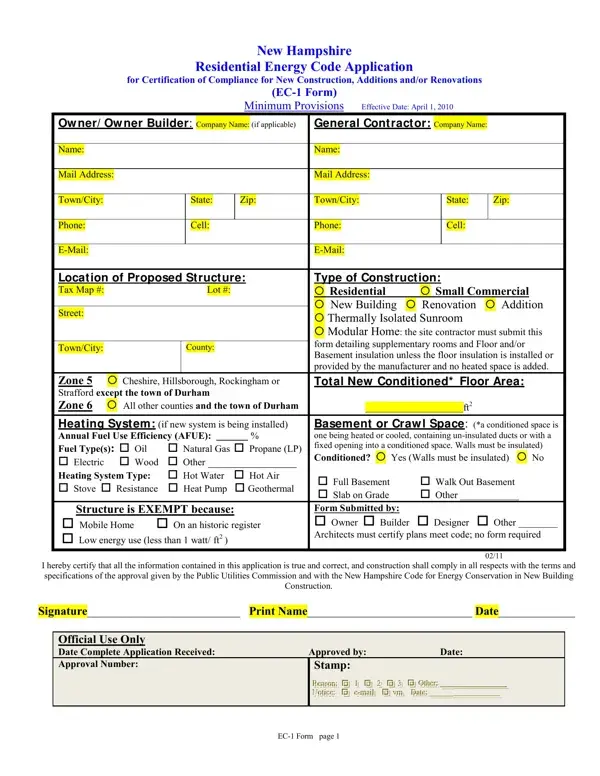

Form Preview Example

New Hampshire

Residential Energy Code Application

for Certification of Compliance for New Construction, Additions and/or Renovations

(EC-1 Form)















































Minimum Provisions

Effective Date: April 1, 2010

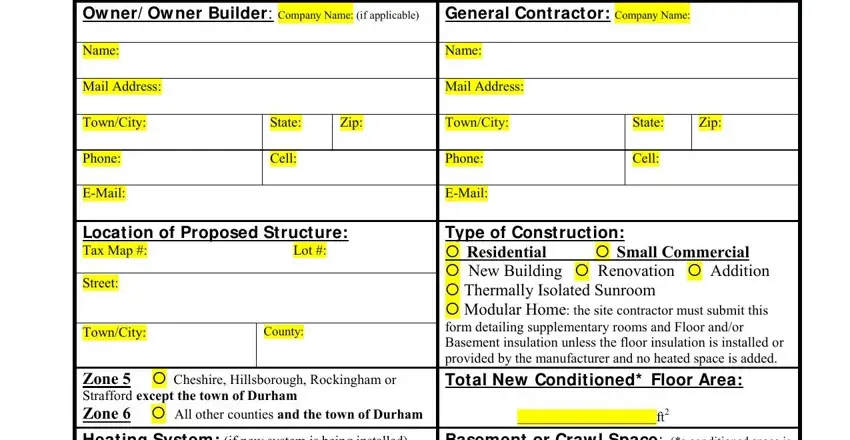

Ow ner/ Ow ner Builder:

Company Name:

(if applicable)



General Contractor:

Company Name:































































































































Name:



















































Name:

































































































































































Mail Address:











































Mail Address:























































































































































Town/City:



















State:











Zip:





Town/City:























State:









Zip:

















































































































Phone:























Cell:





















Phone:



























Cell:





























































































































E-Mail:

















































E-Mail:





































































































Location of Proposed Structure:



Type of Construction:



















Tax Map #:























Lot #:















Residential



Small Commercial

























































New Building

Renovation

Addition



Street:







































































































Thermally Isolated Sunroom

















































































































































Modular Home: the site contractor must submit this

























































form detailing supplementary rooms and Floor and/or



Town/City:

















County:





















































Basement insulation unless the floor insulation is installed or

















































































































provided by the manufacturer and no heated space is added.



Zone 5



Cheshire, Hillsborough, Rockingham or



Total New Conditioned* Floor Area:



Strafford except the town of Durham







































































Zone 6



All other counties and the town of Durham





















ft2



































_________________________

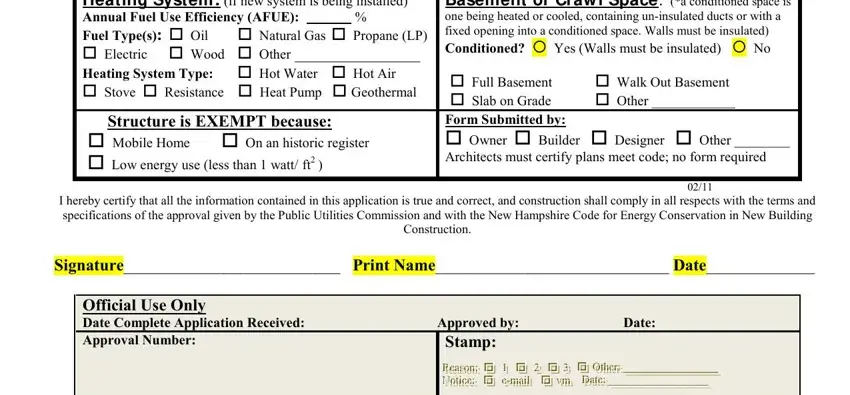

Heating System: (if new system is being installed)



Basement or Craw l Space:

(*a conditioned space is



Annual Fuel Use Efficiency (AFUE):





%

one being heated or cooled, containing un-insulated ducts or with a



Fuel Type(s): Oil



Natural Gas Propane (LP)

fixed opening into a conditioned space. Walls must be insulated)







Conditioned?

Yes (Walls must be insulated)

No



Electric









Wood

Other _______________









































































Heating System Type:



Hot Water

Hot Air



Full Basement



Walk Out Basement



Stove Resistance

Heat Pump

Geothermal









Slab on Grade



Other ____________





























































Structure is EXEMPT because:



Form Submitted by:





































Mobile Home

On an historic register



Owner

Builder

Designer

Other ________



Low energy use (less than 1 watt/ ft2 )













Architects must certify plans meet code; no form required









































































































































































































02/11







I hereby certify that all the information contained in this application is true and correct, and construction shall comply in all respects with the terms and specifications of the approval given by the Public Utilities Commission and with the New Hampshire Code for Energy Conservation in New Building Construction.

Signature__________________________ Print Name____________________________ Date_____________

Official Use Only



Date Complete Application Received:

Approved by:







Date:





Approval Number:



Stamp:





















eason:

1

2

3

ther: _________________







Reeaassoonn::

11

22

33

Otthheerr::__________________________________









otice:

e-

ail



v



ate: __________________









Noottiiccee:: ee--maaiill

vvm

Daattee::____________________________________

























EC-1 Form page 1

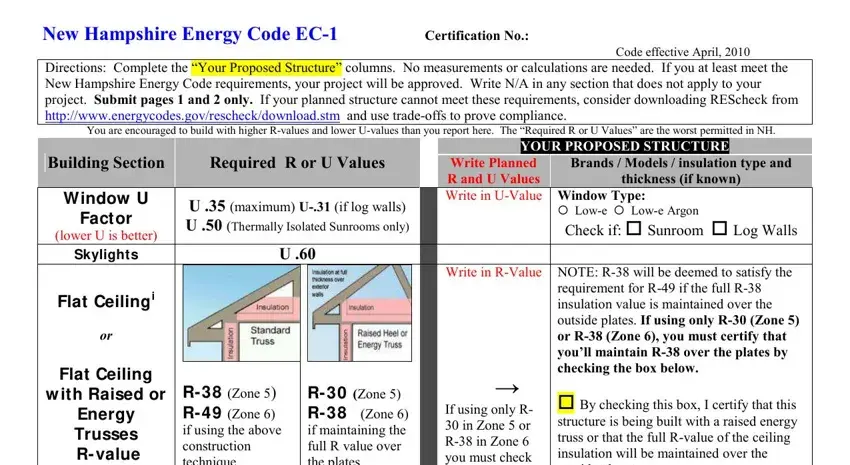

New Hampshire Energy Code EC-1

Certification No.:

Code effective April, 2010

Directions: Complete the “Your Proposed Structure” columns. No measurements or calculations are needed. If you at least meet the New Hampshire Energy Code requirements, your project will be approved. Write N/A in any section that does not apply to your project. Submit pages 1 and 2 only. If your planned structure cannot meet these requirements, consider downloading REScheck from http://www.energycodes.gov/rescheck/download.stm and use trade-offs to prove compliance.

You are encouraged to build with higher R-values and lower U-values than you report here. The “Required R or U Values” are the worst permitted in NH.

























YOUR PROPOSED STRUCTURE







Building Section





Required R or U Values







Write Planned





Brands / Models / insulation type and

























R and U Values







thickness (if known)



































Window U



U .35 (maximum) U-.31 (if log walls)





Write in U-Value





Window Type:

















Low-e Low-e Argon



Factor



















U .50 (Thermally Isolated Sunrooms only)













Check if: Sunroom Log Walls



(lower U is better)



















































Skylight s



U .60















































Write in R-Value





NOTE: R-38 will be deemed to satisfy the



Flat Ceilingi

























requirement for R-49 if the full R-38



























insulation value is maintained over the































outside plates. If using only R-30 (Zone 5)



OR























or R-38 (Zone 6), you must certify that





























you’ll maintain R-38 over the plates by



Flat Ceiling



















checking the box below.

































w ith Raised or



R- 38 (Zone 5)



R- 30 (Zone 5)











By checking this box, I certify that this

















Energy



R- 49 (Zone 6)



R- 38

(Zone 6)





If using only R-



























structure is being built with a raised energy











30 in Zone 5 or







Trusses



if using the above



if maintaining the























truss or that the full R-value of the ceiling











R-38 in Zone 6









construction



full R value over











R- value













insulation will be maintained over the











you must check









technique



the plates































this box





outside plates.

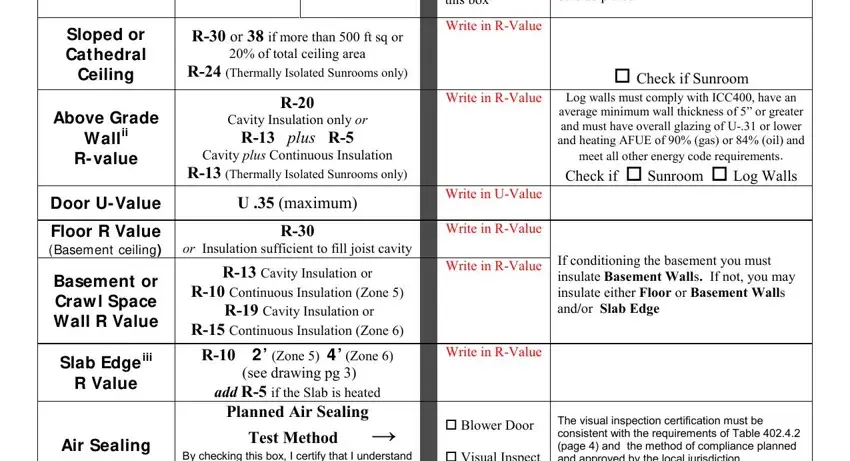

Sloped or



R-30 or 38 if more than 500 ft sq or





Write in R-Value







































Cathedral



20% of total ceiling area























Ceiling



R-24 (Thermally Isolated Sunrooms only)















Check if Sunroom









R-20









Write in R-Value

Log walls must comply with ICC400, have an



Above Grade



















average minimum wall thickness of 5” or greater





Cavity Insulation only or





























and must have overall glazing of U-.31 or lower



Wallii



R-13 plus R-5





































and heating AFUE of 90% (gas) or 84% (oil) and



R- value



Cavity plus Continuous Insulation















meet all other energy code requirements.









R-13 (Thermally Isolated Sunrooms only)













Check if Sunroom Log Walls



Door U- Value



U .35 (maximum)









Write in U-Value









































































Floor R Value



R-30









Write in R-Value















( Basement ceiling)



or Insulation sufficient to fill joist cavity













If conditioning the basement you must









R-13 Cavity Insulation or





Write in R-Value







Basement or















insulate Basement Walls. If not, you may





R-10 Continuous Insulation (Zone 5)













insulate either Floor or Basement Walls



Craw l Space



















R-19 Cavity Insulation or











and/or Slab Edge



Wall R Value

















R-15 Continuous Insulation (Zone 6)























































































Slab Edge iii



R-10 2’ (Zone 5) 4’ (Zone 6)





Write in R-Value







































R Value



(see drawing pg 3)





























ADD R-5 if the Slab is heated

























































Planned Air Sealing





Blower Door





The visual inspection certification must be































Test Method









consistent with the requirements of Table 402.4.2



Air Sealing























Visual Inspect





(page 4) and the method of compliance planned









By checking this box, I certify that I understand









and approved by the local jurisdiction









that I have two approaches to demonstrating





























compliance with air sealing requirements.





















Submit pages 1 and 2 to: NH Public Utilities Commission, 21 South Fruit Street Ste 10, Concord NH 03301

Fax: 603.271.3878 e-mail: energycodes@puc.nh.gov

EC-1 Form page 2

Footnotes to Residential Energy Code Application for Certification of Compliance

iCeilings with attic spaces: R-30 in Zone 5 or R-38 in Zone 6 will be deemed to satisfy the requirement for R-38 or R-49 respectively wherever the full height of uncompressed R-30 or R-38 insulation extends over the wall top plate at the eaves or the full R-value is maintained. This is accomplished by using a raised heel or energy truss as shown in the diagram below or by using higher R-value insulation over the plates.

iiR-13 + R-5 means R-13 cavity insulation plus R-5 insulated sheathing. If structural sheathing covers 25 percent or less of the exterior, R-5 sheathing is not required where the structural sheathing is placed. If structural sheathing covers more than 25 percent of exterior, the structural sheathing must be supplemented with insulated sheathing of at least R-2.

iiiSlab edge insulation must start at the top of the slab edge and extend a total of two (Zone 5) or four feet (Zone 6). Insulation may go straight down, out at an angle away from the building, or along the slab edge and then under the slab. A slab is a concrete floor within 1’ of grade level. See diagram below.

The top edge of insulation installed between the exterior wall and the interior slab may be mitered at a 45 degree angle away from the exterior wall.

Allowable Slab I nsulat ion Configurat ions

A or A+ B must equal two feet in Zone 5 or four feet in Zone 6

MODULAR HOMES must be certified by the NH Department of Safety. Unless the floor insulation is provided by the manufacturer this form must be submitted. This form must also be submitted if the basement is to be insulated or supplementary heated space is added to the home upon or after it is set.

EC-1 Form page 3

AIR BARRIER AND INSULATION INSPECTION COMPONENT CRITERIA

Required Elements Check List (see page 2 AIR SEALING) IECC Code section 402.4.2

This page must be provided to the building inspector at final inspection.





Check here









Certification No.:



















Air barrier and

Exterior thermal envelope insulation for framed walls is installed in







thermal barrier

substantial contact and continuous alignment with building envelope









air barrier.









Breaks or joints in the air barrier are filled or repaired.









Air-permeable insulation is not used as a sealing material.









Air-permeable insulation is inside of an air barrier.







Ceiling/attic

Air barrier in any dropped ceiling/soffit is substantially aligned with









insulation and any gaps are sealed.









Attic access (except unvented attic), knee wall door, or drop down









stair is sealed.







Walls

Corners and headers are insulated.









Junction of foundation and sill plate is sealed.







Windows and doors

Space between window/door jambs and framing is sealed.







Rim joists

Rim joists are insulated and include an air barrier.







Floors

Insulation is installed to maintain permanent contact with underside







(including above-garage

of sub floor decking.







and cantilevered floors)

Air barrier is installed at any exposed edge of insulation.















Crawl space walls

Insulation is permanently attached to walls.









Exposed earth in unvented crawl spaces is covered with Class I









vapor retarder with overlapping joints taped.







Shafts, penetrations

Duct shafts, utility penetrations, knee walls and flue shafts opening









to exterior or unconditioned space are sealed.







Narrow cavities

Batts in narrow cavities are cut to fit, or narrow cavities are filled by









sprayed/blown.







Garage separation

Air sealing is provided between the garage and conditioned spaces.







Recessed lighting

Recessed light fixtures are air tight, IC rated, and sealed to drywall.









Exception—fixtures in conditioned space.

















Plumbing and

Insulation is placed between outside and pipes. Batt insulation is cut







wiring

to fit around wiring and plumbing, or sprayed/blown insulation









extends behind piping and wiring.







Shower/tub on

Showers and tubs on exterior walls have insulation and an air barrier







exterior wall

separating them from the exterior wall.







Electrical/phone box

Air barrier extends behind boxes or air sealed-type boxes are







on exterior walls

installed.

















Common wall

Air barrier is installed in common wall between dwelling units.









HVAC register boots HVAC register boots that penetrate building









envelope are sealed to sub-floor or drywall.







Fireplace

Fireplace walls include an air barrier.

EC-1 Form page 4

NEW HAMPSHIRE ENERGY CODE

Summary of Basic Requirements See IECC 2009 Code Book for complete details These 2 pages must be provided to the building inspector at final inspection or retained.



Check here









Certification No.:







Air Leakage

All joints, seams, penetrations and openings in the thermal envelope including those around





Code section 402.4

window and door assemblies, utility penetrations, dropped ceilings or chases, knee walls,







behind tubs and showers, separating unheated garages from the thermal envelope, common





The building thermal

walls between dwelling units, attic access, rim joist junction and all other openings in the





building envelope that are sources of air leakage must be caulked, gasketed, weather-stripped





envelope must be durably





or otherwise sealed.





sealed to limit infiltration























Air Sealing and Insulation

Building envelope air tightness and insulation installation shall be demonstrated to comply with





Code Section 402.4.2

requirements by Blower Door testing to less than 7 air changes/hr at 50 Pa or a visual







inspection per page 4 of this document. The local Building Official may require an







independent 3rd party to conduct the visual inspection. See page 4.















While the Blower Door Test and/or Visual Option are methods of demonstrating compliance many of the







general requirements as defined by this checklist (pages 5 & 6) must still be met.





Testing Option

Blower Door Test conducted by: _________________________________________





Code Section 402.4.2.1















or

Result (at 50 Pa): __________CFM Interior Volume___________ CF ______________ACH









or















Visual Option











Structure passes Visual Inspection: _____________________signed ______________ date





Code Section 402.4.2.1























Fireplaces

New wood-burning fireplaces shall have gasketed doors and outdoor combustion air.





Code Section 402.4.3



















Recessed Lighting

Recessed lights must be type IC rated and labeled as meeting ASTM E 283 and sealed with a





Code Section 402.4.5

gasket or caulk between the housing and the interior wall or ceiling covering.













Electrical Power and

A minimum of 50% of the lamps in permanently installed lighting fixtures shall be high





Lighting Systems

efficacy lamps.





Code section 404



















High-Efficacy Lamps

Compact fluorescent lamps, T-8 or smaller diameter linear fluorescent lamps, or lamps with





Code section 202

a minimum efficacy of:







1. 60 lumens per watt for lamps over 40 watts,







2. 50 lumens per watt for lamps over 15 watts to 40 watts, and







3. 40 lumens per watt for lamps 15 watts or less.













Materials and Insulation

Materials and equipment must be identified so that code compliance can be determined.





Information

Manufacturer manuals for all installed heating, cooling and service water heating equipment





Code section 102.1

must be provided. Insulation R-values, glazing and door U-values and heating and cooling







equipment efficiency must be clearly marked on the building plans, drawings or specifications.













Pull-Down Attic Stairs,

Should be insulated to a level equal to the surrounding surfaces and tightly sealed and weather-





Attic Hatch, and Knee

stripped at the opening.





Wall Doors











Code section 402.2.3

























EC-1 Form page 5



Full size Attic or

All doors leading from a conditioned space into an unconditioned attic or enclosed attic or



Basement Entry Doors

basement stairwell should be insulated and weather-stripped exterior rated door units. One





door is exempt.









Duct Insulation

Supply ducts in attics must be insulated to at least R-8. All other ducts must be insulated to at



Code section 403.2

least R-6. Exception: Ducts or portions thereof located completely inside the building thermal





envelope.









Duct Construction

Ducts, air handlers, filter boxes, and building cavities used as ducts must be sealed. Joints and



Code sections 403.2.2 &.3

seams must comply with Section M1601.4.1 of the International Residential Code. Building





framing cavities must not be used as supply ducts.









Duct Testing

Duct tightness shall be verified by testing unless the air handler and all ducts are located within



Code sections 403.2.2 &.3

the conditioned space. Test conducted by: _________________________________________





Duct test result at 25 Pa:___________ __Post construction or _______________Rough-in test









Temperature Controls

At least one thermostat must be provided for each separate heating and cooling system. Hot air



Code section 403.1 & .1.1

systems must be equipped with a programmable thermostat.





Heat pumps having supplementary electric-resistance heat must have controls that, except





during defrost, prevent supplemental heat operation when the heat pump compressor can meet





the heating load









Mechanical System Piping

Mechanical system piping capable of conveying fluids at temperatures above 105°F or below



Insulation

55°F must be insulated to R-3.



Code section 403.3











Circulating Hot Water

Circulating service water systems must include an automatic or readily accessible manual



Systems

switch that can turn off the hot water circulating pump when the system is not in use.



Code section 403.4 & NH





amendments

Circulating domestic hot water system piping shall be insulated to R-4.













Mechanical Ventilation

Outdoor air intakes and exhausts must have automatic or gravity dampers that close when the



Code section 403.5

ventilation system is not operating.









Equipment Sizing

Heating and cooling equipment must be sized in accordance with Section M1401.3 of the



Code section 403.6

International Residential Code.









Certificate

A permanent certificate, completed by the builder or registered design professional, must be



Code section 401.3

posted on or in the electrical distribution panel. It must list the R-values of insulation installed





in or on the ceiling, walls, foundation, and ducts outside the conditioned spaces; U-factors and





SHGC for fenestration. The certificate must also list the type and efficiency of heating, cooling





and service water heating equipment.







NEW HAMPSHIRE ENERGY CODE Summary of Basic Requirements Page 2

These 2 pages must be provided to the building inspector at final inspection or retained.

EC-1 Form page 6

How to Edit Ec 1 Form Online for Free

Handling PDF files online is definitely a breeze with this PDF editor. Anyone can fill in residential energy code compliance form here and try out several other functions available. Our editor is constantly evolving to present the best user experience attainable, and that's because of our commitment to continual improvement and listening closely to user opinions. To start your journey, take these easy steps:

Step 1: Hit the orange "Get Form" button above. It is going to open up our pdf editor so you can start filling in your form.

Step 2: As soon as you launch the tool, you will get the form prepared to be filled in. In addition to filling out different blanks, you could also do some other things with the PDF, specifically adding custom text, modifying the initial textual content, inserting illustrations or photos, affixing your signature to the document, and more.

This form will need specific details; in order to ensure consistency, you need to heed the guidelines further down:

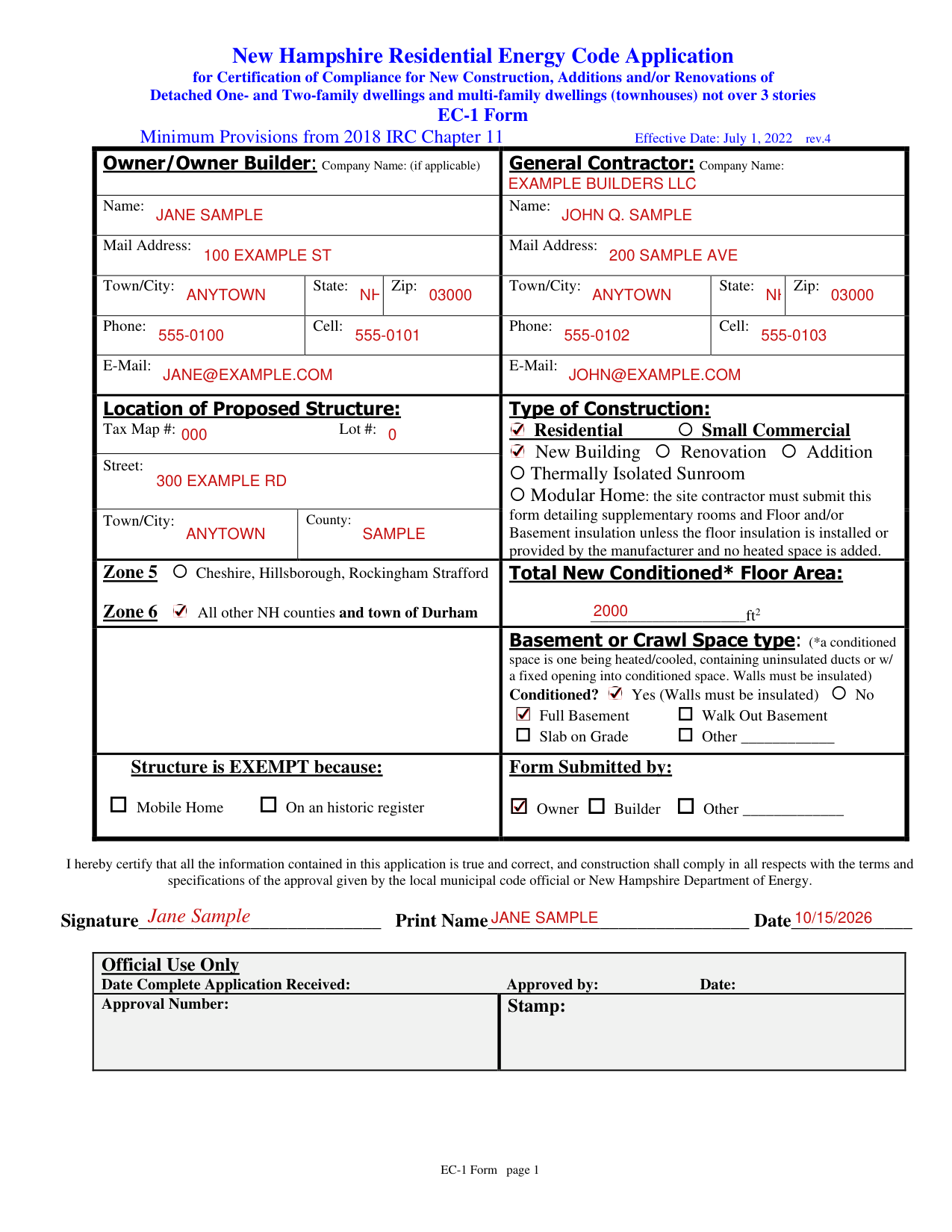

1. First of all, while filling in the residential energy code compliance form, beging with the area that has the subsequent fields:

Completing section 1 of nh energy code

2. Right after the first part is filled out, go to enter the applicable information in these - Heating System if new system is, Structure is EXEMPT because, Mobile Home On an historic, Type of Construction Residential, Walk Out Basement Other, Full Basement Slab on Grade Form, I hereby certify that all the, Construction, Signature Print Name Date, Official Use Only Date Complete, and Stamp RRR eee aaa sss ooo nnn.

Heating System if new system is, Signature Print Name Date, and I hereby certify that all the in nh energy code

3. This third step is typically relatively simple, New Hampshire Energy Code EC, Certification No, Directions Complete the Your, You are encouraged to build with, YOUR PROPOSED STRUCTURE, Code effective April, Building Section, Required R or U Values, Write Planned R and U Values Write, Write in RValue, If using only R in Zone or R in, Brands Models insulation type and, thickness if known, Window Type Lowe Lowe Argon, and NOTE R will be deemed to satisfy - each one of these fields must be filled out here.

Stage number 3 for submitting nh energy code

4. This particular part comes with the following empty form fields to look at: If using only R in Zone or R in, Write in RValue, NOTE R will be deemed to satisfy, Check if Sunroom, Write in RValue, Log walls must comply with ICC, average minimum wall thickness of, meet all other energy code, Check if Sunroom Log Walls, Write in UValue, Write in RValue, Write in RValue, If conditioning the basement you, Write in RValue, and Blower Door Visual Inspect.

Write in RValue, meet all other energy code, and Log walls must comply with ICC inside nh energy code

5. The very last notch to complete this PDF form is essential. You'll want to fill out the necessary fields, like By checking this box I certify, Submit pages and to NH Public, and EC Form page, before finalizing. Failing to do this could produce an unfinished and potentially unacceptable form!

nh energy code writing process clarified (portion 5)

As to Submit pages and to NH Public and By checking this box I certify, be certain you don't make any mistakes here. The two of these are considered the key ones in this document.

Step 3: Before moving forward, you should make sure that all blanks have been filled out properly. As soon as you believe it's all good, press “Done." Make a free trial account with us and acquire direct access to residential energy code compliance form - download, email, or change from your personal cabinet. FormsPal provides protected document editor with no personal information record-keeping or any type of sharing. Be assured that your information is secure with us!
