In the heart of insurance practices, particularly within the confinements of Florida, resides the OIR B1 1802 form, a document of paramount importance for homeowners aiming to verify the mitigation of their properties against the forces of nature. The Uniform Mitigation Verification Inspection Form, as it is formally known, is a comprehensive tool utilized in the inspection of residential properties to identify and assess features that mitigate damage from wind. This form encompasses various aspects of a property, including the roof covering and attachment, roof to wall connections, roof geometry, the construction type of walls, the presence of secondary water resistance, and the adequacy of opening protections against wind-borne debris. By meticulously documenting the existence and condition of these features, the form plays a crucial role in determining the eligibility and extent of insurance discounts for which a homeowner may qualify. This inspection procedure, mandated to be performed by a qualified inspector, not only aims to inform insurance companies but also serves as a guide for property owners to enhance their homes' resilience against severe weather events, ultimately contributing to the safety and structural integrity of their dwellings.

QuestionAnswer
Form NameForm Oir B1 1802
Form Length2 pages
Fillable?No
Fillable fields0
Avg. time to fill out30 sec
Other namesuniform mitigation forms oir b1 1802 rev 0112 fillable form

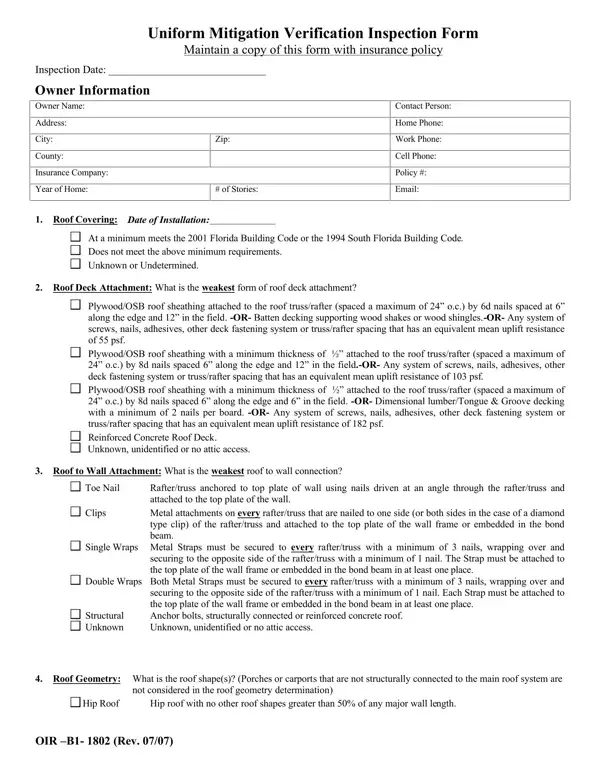

Form Preview Example

Uniform Mitigation Verification Inspection Form

Maintain a copy of this form with insurance policy

Inspection Date: _____________________________

Owner Information

Owner Name:

Address:







City:

Zip:





County:







Insurance Company:







Year of Home:

# of Stories:





Contact Person:

Home Phone:

Work Phone:

Cell Phone:

Policy #:

Email:

1.Roof Covering: Date of Installation:

At a minimum meets the 2001 Florida Building Code or the 1994 South Florida Building Code.

Does not meet the above minimum requirements.

Unknown or Undetermined.

2.Roof Deck Attachment: What is the weakest form of roof deck attachment?

Plywood/OSB roof sheathing attached to the roof truss/rafter (spaced a maximum of 24” o.c.) by 6d nails spaced at 6” along the edge and 12” in the field. -OR- Batten decking supporting wood shakes or wood shingles.-OR- Any system of screws, nails, adhesives, other deck fastening system or truss/rafter spacing that has an equivalent mean uplift resistance of 55 psf.

Plywood/OSB roof sheathing with a minimum thickness of ½” attached to the roof truss/rafter (spaced a maximum of 24” o.c.) by 8d nails spaced 6” along the edge and 12” in the field.-OR- Any system of screws, nails, adhesives, other deck fastening system or truss/rafter spacing that has an equivalent mean uplift resistance of 103 psf.

Plywood/OSB roof sheathing with a minimum thickness of ½” attached to the roof truss/rafter (spaced a maximum of 24” o.c.) by 8d nails spaced 6” along the edge and 6” in the field. -OR- Dimensional lumber/Tongue & Groove decking with a minimum of 2 nails per board. -OR- Any system of screws, nails, adhesives, other deck fastening system or truss/rafter spacing that has an equivalent mean uplift resistance of 182 psf.

Reinforced Concrete Roof Deck. Unknown, unidentified or no attic access.

3.Roof to Wall Attachment: What is the weakest roof to wall connection?

Toe Nail

Rafter/truss anchored to top plate of wall using nails driven at an angle through the rafter/truss and



attached to the top plate of the wall.

Clips

Metal attachments on every rafter/truss that are nailed to one side (or both sides in the case of a diamond



type clip) of the rafter/truss and attached to the top plate of the wall frame or embedded in the bond



beam.

Single Wraps

Metal Straps must be secured to every rafter/truss with a minimum of 3 nails, wrapping over and



securing to the opposite side of the rafter/truss with a minimum of 1 nail. The Strap must be attached to



the top plate of the wall frame or embedded in the bond beam in at least one place.

Double Wraps

Both Metal Straps must be secured to every rafter/truss with a minimum of 3 nails, wrapping over and



securing to the opposite side of the rafter/truss with a minimum of 1 nail. Each Strap must be attached to



the top plate of the wall frame or embedded in the bond beam in at least one place.

Structural

Anchor bolts, structurally connected or reinforced concrete roof.

Unknown

Unknown, unidentified or no attic access.

4.Roof Geometry: What is the roof shape(s)? (Porches or carports that are not structurally connected to the main roof system are not considered in the roof geometry determination)

Hip Roof

Hip roof with no other roof shapes greater than 50% of any major wall length.

OIR –B1- 1802 (Rev. 07/07)

Other

Any other roof shape or combination of roof shapes including hip, gable, flat, gambrel, mansard and



other roof shapes.

5.Gable End Bracing: For roof structures that contain gables, please check the weakest that apply:

Gable End(s) are NOT braced.

Gable End(s) are braced at a minimum in accordance with the 2001 Florida Building Code.

Not applicable, unknown or unidentified.

6.Wall Construction Type: Check all wall construction types for exterior walls of the structure and percentages for each:

Wood Frame

_________%

Un-Reinforced Masonry

_________%

Reinforced Masonry

_________%

Poured Concrete

_________%

Other: ___________

_________%





7.Secondary Water Resistance (SWR): (standard underlayments or hot mopped felts are not SWR)

SWR

Self adhering polymer modified bitumen roofing underlayment applied directly to the sheathing or foam



SWR Barrier (not foamed on insulation) applied as a secondary means to protect the dwelling from water



intrusion.

No SWR



8.Opening Protection: What is the weakest form of wind borne debris protection installed on the structure? (Exterior openings

include, but are not limited to: windows, doors, garage doors, skylights, etc. Product approval may be required for opening protection devices without proper rating identification)

Hurricane

All exterior openings are fully protected at a minimum with impact resistant coverings, impact resistant



doors and/or impact resistant glazing that meets the requirements of one of the following for “Large



Missile Impact:



Miami-Dade County PA 201, 202 and 203



Florida Building Code TAS 201, 202 and 203



ASTM E 1886 and ASTM E 1996 (Missile Level C – 9 lb)

Basic

All exterior openings are fully protected at a minimum with impact resistant coverings, impact resistant



doors and/or impact resistant glazing that meets the requirements for “Small Missile Impact”.

Not Rated

Only glazed openings are covered with; impact resistant coverings/products -OR- shutter protection



devices manufactured before 1994 that cannot be identified as Miami/Dade or FBC product approved.



This rating also applies to wood structural panels that do not meet the requirements of Section 1609 and



Table 1609.1.4 of the 2004 FBC (2006 supplement).

Wood Panels

Plywood/OSB meeting the requirements of Section 1609 and Table 1609.1.4 of the 2004 FBC (2006



supplement).

None

One or more exterior openings are not covered with wind borne debris protection. This rating also applies



to after-market window films.

MITIGATION INSPECTIONS MUST BE PERFORMED BY A QUALIFIED INSPECTOR.

For a listing of Individuals and/or Companies meeting these qualifications contact your Insurance Agent.

In my professional opinion, based on my knowledge, information and belief, I certify that the above listed statements are true and correct.

Inspector Name:

Inspection Company:

Inspector Signature:

License Type:

License #:





Phone:

Date:

Homeowner/Applicant Signature:

Date:

OIR –B1- 1802 (Rev. 07/07)

*This verification form is valid up to five (5) years provided no material changes have been made to the structure.
