Hopewell Valley Bureau of Fire Safety 201 Washington Crossing Pennington Rd Titusville, NJ 08560

609-730-8156 fax 609-730-1563

Fire Pumps

Fire Pumps Weekly Operating Tests

This form covers a 1-week period.

Year:System:

Location:

Y = Satisfactory

N = Unsatisfactory (explain below)

N/A = Not applicable

Date:Inspector:

YN N/A Comments

Operate fire pump for 10 minutes (30 minutes for diesel pump)

Check packing gland tightness (slight leak at no flow)

Record suction pressure from gauge in psi (bar)

Record discharge pressure from gauge in psi (bar)

Adjust gland nuts if necessary

Check for unusual noise or vibration

Check packing boxes, bearings, or pump casing for overheating

Record pump starting pressure

Observe time for motor to accelerate to full speed (diesel and steam pumps)

For reduced-voltage or reduced-current starting, record time controller is on first step

Record time pump runs after starting for pumps having automatic stop feature

Record time for diesel engine to crank

Record time for diesel engine to reach running speed

Check oil pressure gauge, speed indicator, water and oil temperatures while engine is running

Check heat exchanger for cooling water flow

Record steam pressure for steam-operated pumps

Check water tank float switch

Check solenoids for proper operation

Operate speed governor (internal combustion engine only)

Check steam trap (steam turbine only)

Check steam relief valve (steam turbine only)

Check controller alarms

Record any notes that the inspector believes to be significant in the corresponding action’s comments field.

NFPA Water-Based Fire Protection Systems Forms

1 of 1

How to Edit Mechanical Pump Inspection Online for Free

Our top rated computer programmers have worked together to implement the PDF editor you are going to go with. The following software makes it simple to get pump inspection checklist pdf forms shortly and with ease. This is all you should carry out.

Step 1: Select the "Get Form Now" button to begin.

Step 2: Once you have entered the editing page pump inspection checklist pdf, you will be able to notice all the actions intended for your file in the upper menu.

You need to type in the following data so you can create the document:

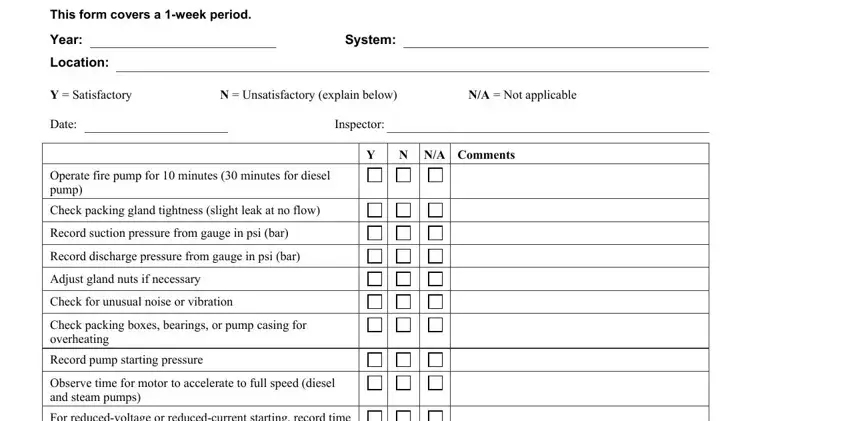

example of gaps in fire pump test log sheet

Note the required particulars in For reducedvoltage or, Record time pump runs after, Record time for diesel engine to, Record time for diesel engine to, Check oil pressure gauge speed, Check heat exchanger for cooling, Record steam pressure for, Check water tank float switch, Check solenoids for proper, Operate speed governor internal, Check steam trap steam turbine only, Check steam relief valve steam, Check controller alarms Record any, and NFPA WaterBased Fire Protection part.

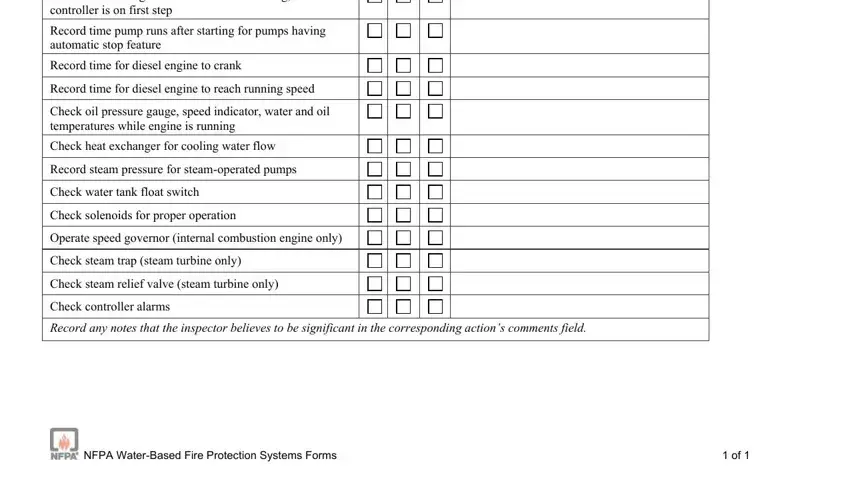

Finishing fire pump test log sheet step 2
