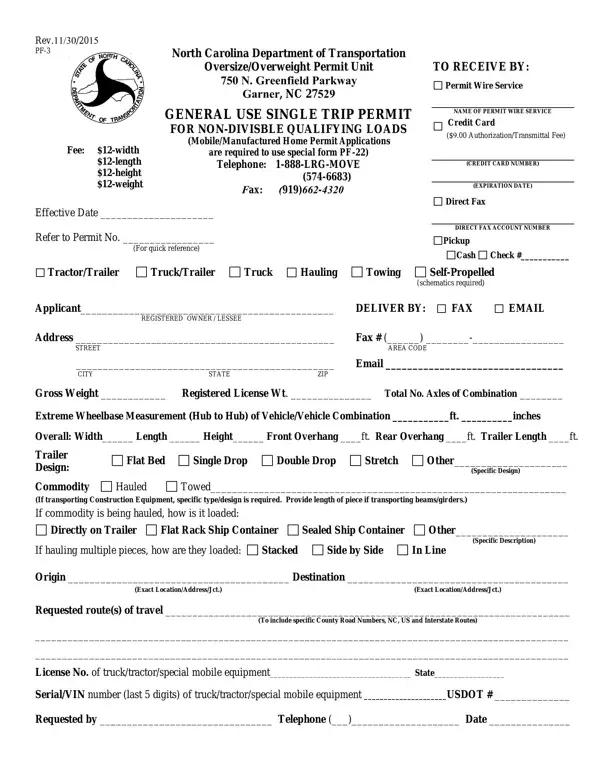

NC DMV Trip Permit Form PDF Details

Managing the movement of oversized or overweight loads on North Carolina's roadways requires specific documentation, a process eased by the NC DMV Trip Permit form. Designed for single trips, this permit is essential for the transport of non-divisible loads that exceed standard size or weight limits. Issued by the North Carolina Department of Transportation’s Oversize/Overweight Permit Unit, the form outlines a fee structure for various load dimensions, including width, length, height, and weight, with each aspect carrying a $12 charge. This streamlined process facilitates the legal transportation of large items, such as mobile homes, which require a different form (PF-22), across North Carolina. Applicants have multiple delivery options for their permit, including fax and email, after paying a fee and providing extensive details about the load, vehicle, and planned route. This detailed approach ensures safety on the roads by considering the specific requirements of oversized or overweight hauls, including the exact origin and destination, requested travel routes, and vehicle information. With the permit’s effective date prominently featured alongside contact information for the Oversize/Overweight Permit Unit, the form acts as a crucial tool for companies and individuals tasked with transporting large items through the state.

QuestionAnswer
Form NameNC DMV Trip Permit Form
Form Length1 pages
Fillable?Yes
Fillable fields68
Avg. time to fill out13 min 55 sec
Other namesexpired permit nc, nc wildlife lease permition slipd, 2015 nc 3, nc driving during quarantine permit

How to Fill Out Form PF-3

Form PF-3 at a glance

What it is: Form PF-3 is the North Carolina Department of Transportation form for a general use single trip permit for non-divisible qualifying loads.

Where and when to file: The North Carolina Department of Transportation Oversize/Overweight Permit Unit is at 750 N. Greenfield Parkway, Garner, NC 27529.

A filled-in Form PF-3 example: one excavator on a single drop trailer

Form PF-3 example filled out, example: one excavator on a single drop trailer
Jane Ann Sample fills out Form PF-3 for a tractor/trailer load. She hauls one excavator directly on a single drop trailer and receives the permit by Direct Fax. The picture shows page 1 only, and every value in it is made up. The permit comes by Direct Fax, so the Permit Wire Service, Credit Card and Pickup boxes stay empty. The permit is delivered by email, so Fax # stays empty. Nothing goes in Refer to Permit No. because there is no earlier permit. The excavator is one piece, so the Multiple pieces boxes stay empty.

How to fill out Form PF-3, box by box

Permit Wire Service

Form PF-3 example filled out, permit Wire Service

Under TO RECEIVE BY, if you use a permit wire service, mark Permit Wire Service and write the NAME OF PERMIT WIRE SERVICE.

Credit Card

Form PF-3 example filled out, credit Card

If you pay by Credit Card, mark Credit Card and write the CREDIT CARD NUMBER and the EXPIRATION DATE; the form prints a $9.00 Authorization/Transmittal Fee next to Credit Card (checked November 14, 2026).

Direct Fax

Form PF-3 example filled out, direct Fax

If you have a direct fax account, mark Direct Fax and write the DIRECT FAX ACCOUNT NUMBER.

Effective Date and Refer to Permit No.

Form PF-3 example filled out, effective Date and Refer to Permit No.

Write the Effective Date.

Refer to Permit No. is for quick reference: if you have a permit number to refer to, write it there.

Pickup, Cash or Check

Form PF-3 example filled out, pickup, Cash or Check

To receive by Pickup, mark Pickup, then mark Cash or Check and write the check number after Check #.

Tractor/Trailer to Self-Propelled

Form PF-3 example filled out, tractor/Trailer to Self-Propelled

Mark one: Tractor/Trailer, Truck/Trailer, Truck, Hauling, Towing or Self-Propelled; schematics are required for Self-Propelled.

Applicant, Address and Deliver by

Form PF-3 example filled out, applicant, Address and Deliver by

After Applicant, write the REGISTERED OWNER / LESSEE, then the Address, with the STREET on the first line and the CITY, STATE and ZIP on the next.

After DELIVER BY, mark FAX or EMAIL: if FAX, write the Fax # with its AREA CODE; if EMAIL, write the Email address.

Weights, axles and measurements

Form PF-3 example filled out, weights, axles and measurements

Write the Gross Weight, the Registered License Wt. and the Total No. Axles of Combination.

Write the Extreme Wheelbase Measurement (Hub to Hub) of the Vehicle/Vehicle Combination in ft. and inches.

Under Overall, write the Width, Length and Height, then the Front Overhang, Rear Overhang and Trailer Length in ft.

Trailer Design

Form PF-3 example filled out, trailer Design

Mark the Trailer Design: Flat Bed, Single Drop, Double Drop, Stretch or Other; if Other, write the Specific Design.

Commodity and how it is loaded

Form PF-3 example filled out, commodity and how it is loaded

Under Commodity, mark Hauled or Towed and write what it is; if transporting Construction Equipment, the specific type/design is required, and if transporting beams/girders, provide the length of piece.

If commodity is being hauled, mark how it is loaded: Directly on Trailer, Flat Rack Ship Container, Sealed Ship Container or Other, with a Specific Description for Other.

Multiple pieces

Form PF-3 example filled out, multiple pieces

If hauling multiple pieces, mark how they are loaded: Stacked, Side by Side or In Line.

Origin, Destination and Requested route(s) of travel

Form PF-3 example filled out, origin, Destination and Requested route(s) of travel

Write the Origin and the Destination, each as an Exact Location/Address/Jct.

Write the Requested route(s) of travel, to include specific County Road Numbers and NC, U.S. and Interstate Routes.

License No., State, Serial/VIN number and USDOT #

Form PF-3 example filled out, license No., State, Serial/VIN number and USDOT #

Write the License No. of the truck/tractor/special mobile equipment and its State.

Write the last 5 digits of the Serial/VIN number of the truck/tractor/special mobile equipment, and the U.S. Department of Transportation (USDOT) #.

Requested by, Telephone and Date

Form PF-3 example filled out, requested by, Telephone and Date

After Requested by, write who requests it, with a Telephone number and the Date.

Mobile/Manufactured Home Permit Applications

If the application is for a Mobile/Manufactured Home Permit

Mobile/Manufactured Home Permit Applications are required to use special form PF-22, not Form PF-3.

Common questions about Form PF-3

Where do I file it?

The Oversize/Overweight Permit Unit Telephone is 1-888-LRG-MOVE (574-6683) and its Fax is (919)662-4320.

Are there fees?

The form lists a Fee of $12 for width, $12 for length, $12 for height and $12 for weight (checked November 14, 2026).

Sources

[1] Form PF-3 (Rev.11/30/2015), General Use Single Trip Permit for Non-Divisible Qualifying Loads, North Carolina Department of Transportation (the Official source link on this page).
