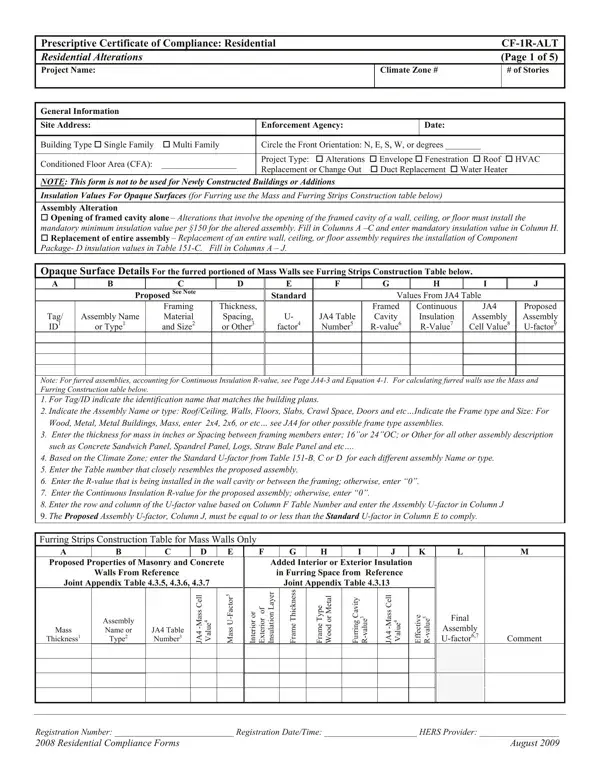

Prescriptive Certificate of Compliance: Residential











CF-1R-ALT

Residential Alterations















(Page 1 of 5)

Project Name:







Climate Zone #





# of Stories

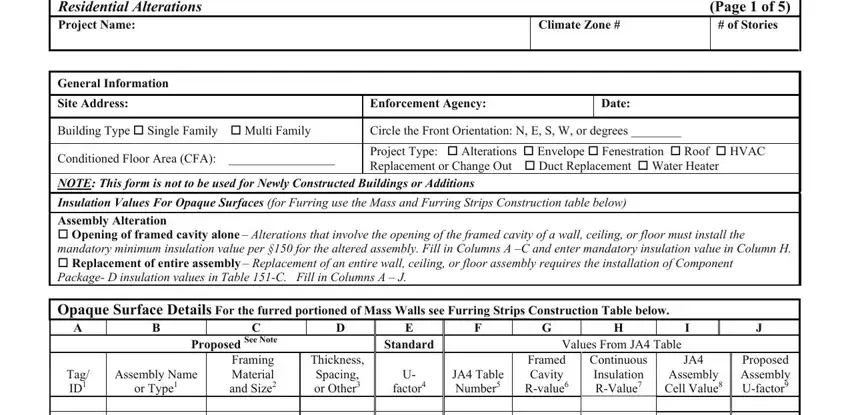

General Information

































Site Address:



Enforcement Agency:



Date:



















Building Type Single Family

Multi Family

Circle the Front Orientation: N, E, S, W, or degrees ________



















Conditioned Floor Area (CFA):

_________________

Project Type:

Alterations

Envelope Fenestration

Roof

HVAC

Replacement or Change Out

Duct Replacement

Water Heater





NOTE: This form is not to be used for Newly Constructed Buildings or Additions

Insulation Values For Opaque Surfaces (for Furring use the Mass and Furring Strips Construction table below)

Assembly Alteration

Opening of framed cavity alone – Alterations that involve the opening of the framed cavity of a wall, ceiling, or floor must install the mandatory minimum insulation value per §150 for the altered assembly. Fill in Columns A –C and enter mandatory insulation value in Column H.

Replacement of entire assembly – Replacement of an entire wall, ceiling, or floor assembly requires the installation of Component Package- D insulation values in Table 151-C. Fill in Columns A – J.

Opaque Surface Details For the furred portioned of Mass Walls see Furring Strips Construction Table below.

A

B

C

D



Proposed See Note







Framing



Thickness,

Tag/

Assembly Name

Material



Spacing,

ID1

or Type1

and Size2



or Other3









































E

Standard

U-

factor4

F

G

H

I



J



Values From JA4 Table





Framed

Continuous

JA4

Proposed

JA4 Table

Cavity

Insulation

Assembly

Assembly

Number5

R-value6

R-Value7

Cell Value8

U-factor9

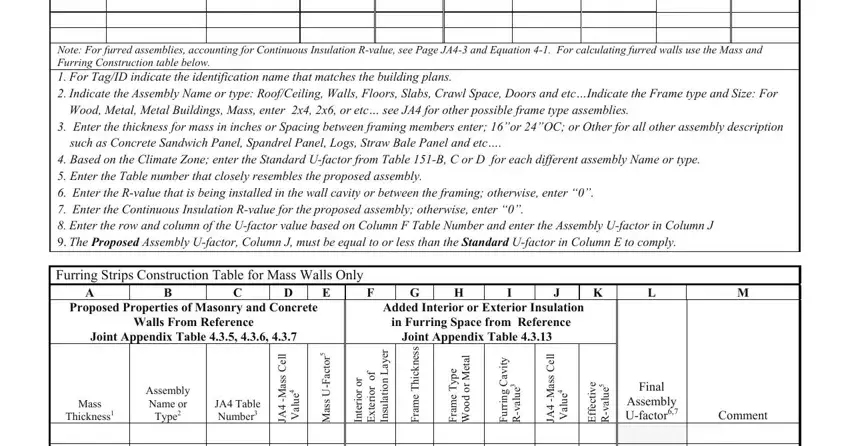

Note: For furred assemblies, accounting for Continuous Insulation R-value, see Page JA4-3 and Equation 4-1. For calculating furred walls use the Mass and Furring Construction table below.

1.For Tag/ID indicate the identification name that matches the building plans.

2.Indicate the Assembly Name or type: Roof/Ceiling, Walls, Floors, Slabs, Crawl Space, Doors and etc…Indicate the Frame type and Size: For Wood, Metal, Metal Buildings, Mass, enter 2x4, 2x6, or etc… see JA4 for other possible frame type assemblies.

3.Enter the thickness for mass in inches or Spacing between framing members enter; 16”or 24”OC; or Other for all other assembly description such as Concrete Sandwich Panel, Spandrel Panel, Logs, Straw Bale Panel and etc….

4.Based on the Climate Zone; enter the Standard U-factor from Table 151-B, C or D for each different assembly Name or type.

5.Enter the Table number that closely resembles the proposed assembly.

6.Enter the R-value that is being installed in the wall cavity or between the framing; otherwise, enter “0”.

7.Enter the Continuous Insulation R-value for the proposed assembly; otherwise, enter “0”.

8.Enter the row and column of the U-factor value based on Column F Table Number and enter the Assembly U-factor in Column J

9.The Proposed Assembly U-factor, Column J, must be equal to or less than the Standard U-factor in Column E to comply.

Furring Strips Construction Table for Mass Walls Only

A

B

C

D



E

F





G

H

I

J



K

L

M

Proposed Properties of Masonry and Concrete





Added Interior or Exterior Insulation









Walls From Reference











in Furring Space from Reference







Joint Appendix Table 4.3.5, 4.3.6, 4.3.7









Joint Appendix Table 4.3.13







Thickness1

Type2

Number3

Mass-JA4Cell Value



-UMassFactor

Interioror Exteriorof

InsulationLayer



ThicknessFrame

TypeFrame orWoodMetal

FurringCavity value-R

Mass-JA4Cell Value



Effective value-R

U-factor6,7

Comment











5

























Assembly



4















3

4



5

Final































Assembly



Mass

Name or

JA4 Table







































































































































































































































Registration Number: ___________________________ Registration Date/Time: _____________________ HERS Provider: __________________

2008 Residential Compliance Forms

August 2009

Prescriptive Certificate of Compliance: Residential



CF-1R-ALT

Residential Alterations



(Page 2 of 5)

Project Name:

Climate Zone #

# of Stories

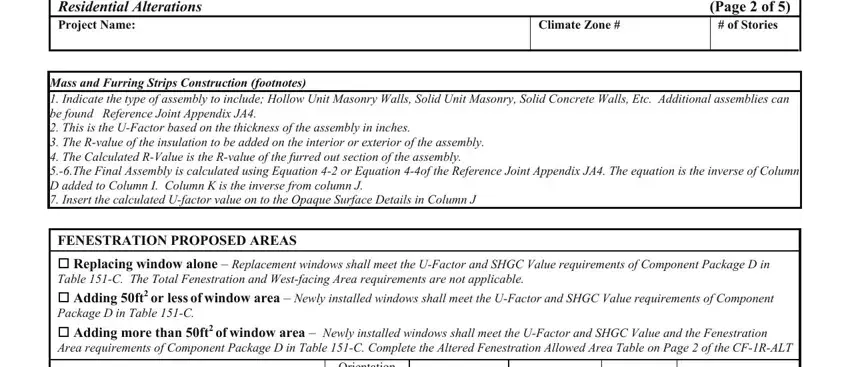

Mass and Furring Strips Construction (footnotes)

1.Indicate the type of assembly to include; Hollow Unit Masonry Walls, Solid Unit Masonry, Solid Concrete Walls, Etc. Additional assemblies can be found Reference Joint Appendix JA4.

2.This is the U-Factor based on the thickness of the assembly in inches.

3.The R-value of the insulation to be added on the interior or exterior of the assembly.

4.The Calculated R-Value is the R-value of the furred out section of the assembly.

5.-6.The Final Assembly is calculated using Equation 4-2 or Equation 4-4of the Reference Joint Appendix JA4. The equation is the inverse of Column D added to Column I. Column K is the inverse from column J.

7. Insert the calculated U-factor value on to the Opaque Surface Details in Column J

FENESTRATION PROPOSED AREAS

Replacing window alone Replacement windows shall meet the U-Factor and SHGC Value requirements of Component Package D in Table 151-C. The Total Fenestration and West-facing Area requirements are not applicable.

Adding 50ft2 or less of window area Newly installed windows shall meet the U-Factor and SHGC Value requirements of Component Package D in Table 151-C.

Adding more than 50ft2 of window area Newly installed windows shall meet the U-Factor and SHGC Value and the Fenestration Area requirements of Component Package D in Table 151-C. Complete the Altered Fenestration Allowed Area Table on Page 2 of the CF-1R-ALT

Fenestration Type and Frame

(Window, Glass Door or Skylight)

Orientation

(North, East,

South, West)

PropsedArea1

(ft2)

Maximum U-factor2, 3

Maximum

SHGC2, 3, 4

NFRC or Default

Value5

1.Fenestration area is the area of total glazed product (i.e. glass plus frame). Exception: When a door is less than 50% glass, the fenestration area may be the glass area plus a “2 inch frame” around the glass.

2.Enter value from Component Package D Requirements in Table 151-C.

3.Actual fenestration products installed and as indicated in CF-6R-ENV Form shall be equivalent to or have a lower U-factor and/or a lower SHGC value than that specified on the CF-1R ALT Form.

4.Submit a completed WS-3R Form if a reduced SHGC is calculated with exterior shading.

5.If applicable at this stage enter “NFRC” for NFRC Certified windows or are CEC “Default” values found in Table 116-A or B.

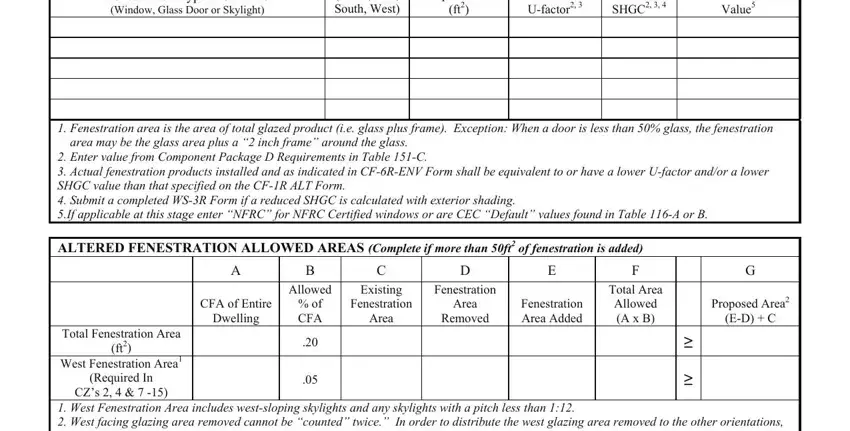

ALTERED FENESTRATION ALLOWED AREAS (Complete if more than 50ft2 of fenestration is added)



A

B

C

D

E

F



G























Allowed

Existing

Fenestration



Total Area







CFA of Entire

% of

Fenestration

Area

Fenestration

Allowed



Proposed Area2



Dwelling

CFA

Area

Removed

Area Added

(A x B)



(E-D) + C

Total Fenestration Area



.20











(ft2)













West Fenestration Area1















(Required In



.05











CZ’s 2, 4 & 7 -15)

















1.West Fenestration Area includes west-sloping skylights and any skylights with a pitch less than 1:12.

2.West facing glazing area removed cannot be “counted” twice.” In order to distribute the west glazing area removed to the other orientations, input the west glazing area removed in the Total Fenestration Area row, column D.

3.Include the Proposed Area of the West facing fenestration in both Area columns below.

4.To meet compliance, the Proposed Area must be less than or equal to the Total Allowed Area for BOTH the Total and West Fenestration Areas.

Registration Number: ___________________________ Registration Date/Time: _____________________ HERS Provider: __________________

2008 Residential Compliance Forms

August 2009

4
4
4
4
4
1. The CRRC Product ID Number can be obtained from the Cool Roof Rating Council’s Rated Product Directory at www.coolroofs.org/products/search.php
2. Indicate the type of product is being used for the roof top, i.e. single-ply roof, asphalt roof, metal roof, etc.
3. If the Aged Reflectance is not available in the Cool Roof Rating Council’s Rated Product Directory then use the Initial Reflectance value from the same
directory and use the equation (0.2+0.7(ρinitial – 0.2) to obtain a calculated aged value. Where ρ is the Initial Solar Reflectance.
4. Check box if the Aged Reflectance is a calculated value using the equation above.
5. Calculate the SRI value by using the SRI- Worksheet at http://www.energy.ca.gov/title24/ and enter the resulting value in the SRI Column above and attach acopy of the SRI- Worksheet to the CF-1R.
To apply Liquid Field Applied Coatings, the coating must be applied across the entire roof surface and meet the dry mil thickness or coverage recommended by the coatings manufacturer and meet minimum performance requirements listed in §118(i)4. Select the applicable coating:

Prescriptive Certificate of Compliance: Residential



CF-1R-ALT

Residential Alterations



(Page 3 of 5)

Project Name:

Climate Zone #

# of Stories







ROOFING PRODUCTS (COOL ROOFS) §151(f)12

When the area of exterior roof surface to be replaced exceeds more than 50% of the existing roof area, or more than 1,000 ft2, whichever is less, the new roofing area must meet the roofing product “Cool Roof” requirements of §152(b)1Hi, 152(b)1Hii, or 152(b)1Hiii.

Check applicable alternative or exception below if the roof alteration is exempt from the roofing product “Cool Roof” requirements. Note: If any one of the alternatives or exception below is checked, the Aged Solar Reflectance and Thermal Emittance requirements for roofing products in §118(i) are not applicable. Do not fill table below.

Cool Roofs Not Required in Climate Zones 1-12, 14, and 16 with a Low Sloped. Less or 2:12 pitch.

Cool Roofs Not Required in Climate Zones 1 through 9 and 16 with a Steep-Sloped Roofs (pitch greater than 2:12) and product unit weight less than 5lb/ft2.

Alternatives to §152(b)1Hi and §152(b)Hii, Steep-slope roof (pitch > 2:12)

Insulation with a thermal resistance of at least 0.85 hr·ft2·°F/Btu or at least a 3/4 inch air-space is added to the roof deck over an attic; or

Existing ducts in the attic are insulated and sealed according to §151(f)10; or

In climate zones 10, 12 and 13, with 1 ft2 of free ventilation area of attic ventilation for every 150 ft2 of attic floor area, and where at least 30 percent of the free ventilation area is within 2 feet vertical distance of the roof ridge; or

Building has at least R-30 ceiling insulation; or

Building has radiant barrier in the attic meeting the requirements of §151(f)2; or Building has no ducts in the attic; or

In climate zones 10, 11, 13 and 14, R-3 or greater roof deck insulation above vented attic.

Exception to §152(b)1Hiii, Low-slope roof ( pitch ≤ 2:12)

Building has no ducts in the attic.

Other Exceptions

Roofing area covered by building integrated; photovoltaic panels and solar thermal panels are exempt from the below Cool Roof criteria. Roof constructions that have thermal mass over the roof membrane with at least 25 lb/ft2 is exempt from the below Cool Roof criteria.

Note: If no CRRC-1 label is available, this compliance method cannot be used, use the Performance Approach to show compliance, otherwise, Check the applicable box below if Exempt from the Roofing Products “Cool Roof” Requirement:



Roof Slope

Product Weight

Product

Aged Solar

Thermal



CRRC Product ID Number1

2:12 > 2:12

< 5lb/ft2 5lb/ft2

Type2

Reflectance3,4

Emittance

SRI5





































































































Aluminum-Pigmented Asphalt Roof Coating

Cement-Based Roof Coating

Other ______________________

Registration Number: ___________________________ Registration Date/Time: _____________________ HERS Provider: __________________

2008 Residential Compliance Forms

August 2009

Prescriptive Certificate of Compliance: Residential









CF-1R-ALT

Residential Alterations











(Page 4 of 5)

Project Name:







Climate Zone #



# of Stories

































HVAC SYSTEMS - HEATING















Minimum



Duct or Piping





Configuration

Heating Equipment

Efficiency

Distribution

Insulation



Thermostat

(Central, Split,

Type and Capacity1,2,3

(AFUE or HSPF)

Type and Location4

R-Value



Type

Space, Package or Hydronic)

































1. Indicate Heating Type (Central Furnace, Wall Furnace, Heat pump, Boiler, Electric Resistance, etc.)

2. Electric resistance heating is allowed only in Component Package C, or except where electric heating is supplemental (i.e., if total capacity < 2 KW or 7,000 Btu/hr electric heating is controlled by a time-limiting device not exceeding 30 minutes). See §151(b)3 exception.

3. Refer to the HERS Verification section on Page 4 of the CF-1R-ALT Form for additional requirements and check applicable boxes.

4. Indicate Type or Location (Ducts, Hydronic in Floor, Radiators, etc.)

HVAC SYSTEMS - COOLING



Minimum











Efficiency



Duct or Piping



Configuration

Cooling Equipment

(SEER/EER or

Distribution

Insulation

Thermostat

(Central, Split,

Type and Capacity1,2

COP)

Type and Location3

R-Value

Type

Space, Package or Hydronic)

























1. Indicate Cooling Type (A/C, Heat pump, Evap. Cooling, etc)

2. Refer to the HERS Verification section on Page 4 of the CF-1R-ALT Form for additional requirements and check applicable boxes.

3. Indicate Type or Location (Ducts, Hydronic in Floor, Radiators, etc.)

WATER HEATING

List water heaters and boilers for both domestic hot water (DHW) heaters and hydronic space heating. Individual dwelling DHW heaters must be gas or propane fired, and may not exceed 50 gallons. Hot water pipe insulation from the DHW heater to the kitchen(s) and on all underground hot water pipes is required in all component packages in all climate zones.











External Tank

Water Heater Type/Fuel

Distribution Type

Number In

Tank

Energy Factor or

Insulation

Type1

(Standard, Recirculating)2

System

Capacity (gal)

Thermal Efficiency

R-Value3

























1. Indicate Type (Storage Gas, Heat Pump, Instantaneous, etc.)

2. Recirculating systems serving multiple dwelling units shall meet the recirculation requirements of §150(n). The Prescriptive requirements do not allow the installation of a recirculating water heating system for single dwelling units.

3. The external water heating tank and pipes shall be insulated to meet the requirements of §150(j).

SPECIAL FEATURES The enforcement agency should pay special attention to the Special Features specified in this checklist below. These items may require written justification and documentation and special verification.

NEW ROOF ASSEMBLY - Radiant Barrier

The radiant barrier requirement of §151(f)2 does not apply to roof alterations.

Slab Edge (Perimeter) Insulation

YES

NO

YES: In Climate Zone 16 in Component Packages D, R-7 insulation is required.









Heated Slab Insulation

YES

NO



YES: Slab edge insulation required for all heated slabs in all Climate Zones. See details in Table 118-A of the standards.

Raised Slab Insulation

YES

NO

YES: In Climate Zones 1, 2, 11, 13, 14 & 16, R-8 insulation is required; in Climate Zones 12 & 15, R-4 is required under component Package D.

Thermal Mass

To obtain Compliance Credit for the installation of thermal mass, use the Performance Approach.

Registration Number: ___________________________ Registration Date/Time: _____________________ HERS Provider: __________________

2008 Residential Compliance Forms

August 2009

Refrigerant Charge - Split System

Prescriptive Certificate of Compliance: Residential



CF-1R-ALT

Residential Alterations



(Page 5 of 5)

Project Name:

Climate Zone #

# of Stories







HERS VERIFICATION SUMMARY The enforcement agency should pay special attention to the HERS Measures specified in this checklist below. A completed and signed CF-4R Form for all the measures specified shall be submitted to the building inspector before final inspection.

Duct Sealing & Testing HERS verification is required for this measure.

YES

NO YES: In Climate Zones 2 and 9-16, if more than 40 linear feet of new or replacement ducts are installed in unconditioned



space, the ducts are to be sealed per §152(b)1Dii and the newly installed ducts are to be insulated per §151(f)10.



EXCEPTION: Existing duct systems that are extended, which are constructed, insulated or sealed with asbestos.

YES

NO YES: In Climate Zones 2 and 9-16, if the existing space-conditioning system (HVAC equipment and ducting) is replaced, the



ducts are to be sealed per §152(b)1Di.

YES

NO YES: In Climate Zones 2 and 9-16, if the existing HVAC equipment is replaced (including the replacement of the air handler,



outdoor condensing unit of a split system, cooling or heating coil, or the furnace heat exchanger) the ducts are to be



sealed per §152(b)1E.



EXCEPTION: Duct systems that are documented to have been previously sealed confirmed through HERS



verification in accordance with procedures in the Reference Residential Appendix RA3.



EXCEPTION: Duct systems with less than 40 linear feet in unconditioned space.



EXCEPTION: Existing duct systems constructed, insulated or sealed with asbestos.

HERS verification is required for this measure.

YES NO YES: In Climate Zones 2 and 8-15, when the existing HVAC equipment is replaced (including the replacement of the air handler, outdoor condensing unit of a split system A/C or heat pump, cooling or heating coil, or the furnace heat exchanger) a refrigerant charge measurement shall be verified per §152(b)1F.

Central Fan Integrated (CFI) Ventilation System and Fan Watt Draw

The ventilation requirements of §150(o) do not apply to existing residential homes.

Ducted Split Systems - Air Conditioners and Heat Pumps: Airflow HERS verification is required for this measure.

YES

NO YES: In Climate Zones 10 through 15, when the existing space-conditioning system (HVAC equipment and ducting) is



replaced, the airflow and fan watt draw shall be verified per §152(b)1Ci to meet the requirements of §151(f)7B.

Documentation Author's Declaration Statement

I certify that this Certificate of Compliance documentation is accurate and complete.

Name:

Company:

Address:

City/State/Zip:

Signature:

Date:

If Applicable CEA or CEPE (Certification #):

Phone:

Responsible Building Designer's Declaration Statement

I am eligible under Division 3 of the California Business and Professions Code to accept responsibility for the building design identified on this Certificate of Compliance.

I certify that the energy features and performance specifications for the building design identified on this Certificate of Compliance conform to the requirements of Title 24, Parts 1 and 6 of the California Code of Regulations.

The building design features identified on this Certificate of Compliance are consistent with the information provided to document this building design on the other applicable compliance forms, worksheets, calculations, plans and specifications submitted to the enforcement agency for approval with this building permit application.

Name:

Signature:





Company:

Date:

Address:

License:

City/State/Zip:

Phone:

For assistance or questions regarding the Energy Standards, contact the Energy Hotline at: 1-800-772-3300.

Registration Number: ___________________________ Registration Date/Time: _____________________ HERS Provider: __________________

2008 Residential Compliance Forms

August 2009

How to Edit Cf 1R Alt Form Online for Free

Handling PDF forms online is easy with this PDF tool. Anyone can fill in cf1r alt here painlessly. Our professional team is always working to develop the editor and ensure it is much easier for people with its many features. Unlock an constantly innovative experience today - take a look at and uncover new opportunities as you go! To get the ball rolling, take these easy steps:

Step 1: Press the orange "Get Form" button above. It's going to open our tool so you can begin filling in your form.

Step 2: Once you launch the PDF editor, there'll be the document made ready to be completed. Apart from filling out different blanks, you may as well do other sorts of things with the PDF, such as putting on custom textual content, editing the original textual content, inserting images, affixing your signature to the form, and more.

Filling out this PDF demands care for details. Ensure that every single field is filled in properly.

1. When submitting the cf1r alt, make certain to incorporate all important blanks in its relevant form section. This will help to expedite the process, which allows your details to be processed quickly and accurately.

Filling out section 1 of cf1r prescriptive form

2. The next stage is usually to fill out these blanks: Note For furred assemblies, Wood Metal Metal Buildings Mass, Enter the thickness for mass in, such as Concrete Sandwich Panel, Based on the Climate Zone enter, Furring Strips Construction Table, Proposed Properties of Masonry and, Added Interior or Exterior, Walls From Reference, Joint Appendix Table, in Furring Space from Reference, Joint Appendix Table, Mass, Thickness, and Assembly Name or.

Note For furred assemblies, Walls From Reference, and Joint Appendix Table in cf1r prescriptive form

It's easy to make an error when completing your Note For furred assemblies, hence you'll want to take another look prior to when you submit it.

3. This 3rd section should be pretty straightforward, Registration Number Registration - every one of these form fields will have to be filled out here.

Registration Number  Registration, Registration Number  Registration, and Registration Number  Registration inside cf1r prescriptive form

4. The next section will require your attention in the following areas: Prescriptive Certificate of, Climate Zone, of Stories, Mass and Furring Strips, FENESTRATION PROPOSED AREAS cid, and Orientation North East South West. Ensure you provide all needed information to go forward.

cf1r prescriptive form writing process shown (step 4)

5. Last of all, the following last segment is precisely what you will need to wrap up prior to finalizing the form. The fields here are the following: Fenestration Type and Frame Window, Orientation North East South West, PropsedArea, Maximum Ufactor, Maximum SHGC, NFRC or Default, Value, Fenestration area is the area of, ALTERED FENESTRATION ALLOWED AREAS, CFA of Entire, Dwelling, Total Fenestration Area, West Fenestration Area, Required In, and CZs.

Step no. 5 for submitting cf1r prescriptive form

Step 3: Once you've glanced through the details provided, just click "Done" to conclude your form. Grab the cf1r alt as soon as you join for a 7-day free trial. Instantly gain access to the pdf form within your personal account page, together with any edits and changes being all preserved! FormsPal guarantees your data privacy via a secure method that in no way records or shares any sort of personal information used. Be assured knowing your paperwork are kept safe when you use our services!
