How to Fill Out Form W-3A

Form W-3A at a glance

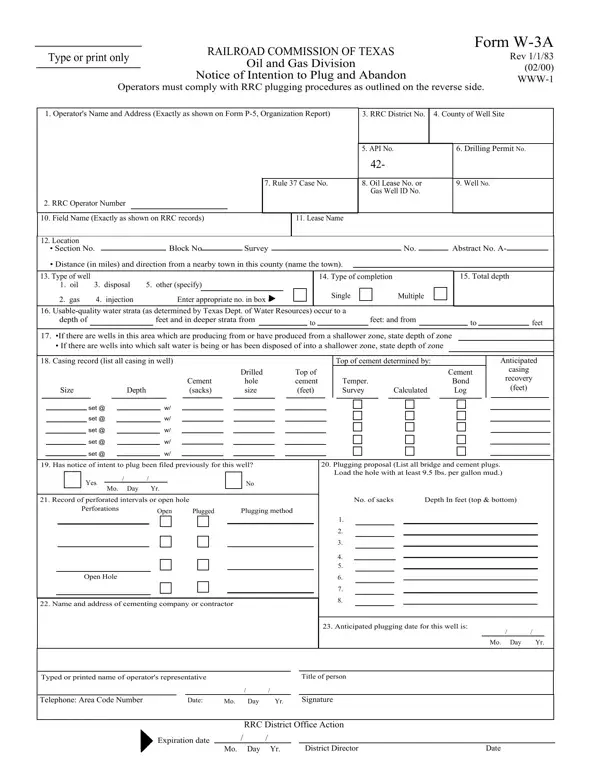

What it is: Form W-3A is the Railroad Commission of Texas Oil and Gas Division Notice of Intention to Plug and Abandon.

Who signs: The operator's representative signs on the Signature line, with the Typed or printed name, Title of person, Telephone and Date.

Operators must comply with RRC plugging procedures.

A filled-in Form W-3A example: an operator files notice to plug an oil well

Form W-3A example filled out, example: an operator files notice to plug an oil well
A small operator files Form W-3A to plug one oil well. The well is idle, and plugging is set for March 2027. The picture shows a filled form, and every value in it is made up. The well has a single completion, so Multiple and other (specify) stay empty. The well type number box is a tick box, so it stays empty. It has one casing string, so casing rows 2 to 5 stay empty. Three plugs are proposed, so plugs 4 to 8 stay empty. The perforations are open, so Plugged stays empty. No earlier notice was filed, so Yes and the notice date stay empty. No Rule 37 case applies, so Rule 37 Case No. stays empty. No other wells produce from or take disposal into a shallower zone, so both zone depths stay empty. Casing is calculated, so Temper. Survey and Bond Log stay empty. One perforated interval is listed, so intervals 2 to 4 stay empty.

How to fill out Form W-3A, box by box

Operator, well and lease

Form W-3A example filled out, operator, well and lease

Enter the Operator's Name and Address (exactly as shown on Form P-5, Organization Report), the RRC District No. and the County of Well Site.

Enter the RRC Operator Number.

Enter the API No. and the Drilling Permit No.

Enter the Rule 37 Case No., the Oil Lease No. or Gas Well ID No. and the Well No.

Enter the Field Name (exactly as shown on RRC records) and the Lease Name.

Location

Form W-3A example filled out, location

Under Location, enter the Section No., Block No, Survey No. and Abstract No., and the distance (in miles) and direction from a nearby town in this county (name the town).

Type of well, type of completion and total depth

Form W-3A example filled out, type of well, type of completion and total depth

For Type of well, enter the appropriate no. in the box: 1. oil, 2. gas, 3. disposal, 4. injection or 5. other (specify).

For Type of completion, mark Single or Multiple.

Enter the Total depth.

Usable-quality water strata and shallower zones

Form W-3A example filled out, usable-quality water strata and shallower zones

Enter the depth (feet) to which Usable-quality water strata (as determined by Texas Dept. of Water Resources) occur, then the deeper strata from and to (feet), and from and to (feet).

If there are wells in this area which are producing from or have produced from a shallower zone, state depth of zone. If there are wells into which salt water is being or has been disposed of into a shallower zone, state depth of zone.

Casing record

Form W-3A example filled out, casing record

In the Casing record, list all casing in the well: Size, Depth, Cement (sacks), Drilled hole size, Top of Cement (feet) and Anticipated casing recovery (feet), with Top of cement determined by Temper. Survey, Calculated or Bond Log.

Has notice of intent to plug been filed previously

Form W-3A example filled out, has notice of intent to plug been filed previously

Has notice of intent to plug been filed previously for this well? Mark Yes or No, with Mo. Day Yr.

Plugging proposal and record of perforated intervals

Form W-3A example filled out, plugging proposal and record of perforated intervals

In the Plugging proposal, list all bridge and cement plugs. Load the hole with at least 9.5 lbs. per gallon mud. Enter the No. of sacks and the Depth in feet (top & bottom).

In the Record of perforated intervals or open hole, enter the Perforations, mark Open or Plugged and enter the Plugging method.

Cementing company and anticipated plugging date

Form W-3A example filled out, cementing company and anticipated plugging date

Enter the Name and address of cementing company or contractor.

Enter the Anticipated plugging date for this well as Mo. Day Yr.

Representative, telephone, date and signature

Form W-3A example filled out, representative, telephone, date and signature

The operator's representative signs on the Signature line, with the Typed or printed name, Title of person, Telephone and Date.

More rules for Form W-3A

Type or print only.

Sources

[1] Form W-3A (Rev 1/1/83), Notice of Intention to Plug and Abandon, Railroad Commission of Texas (the Official source link on this page).
