In the realm of residential swimming pools, understanding and adhering to regulations is paramount for safety, efficiency, and legal compliance. This is where the Cf2R PLB 03 E form plays a critical role. Revised to encapsulate the essence of pool and spa heating system regulations, this certificate of installation represents a comprehensive guide that pool builders, installers, and homeowners must follow to ensure their installations are up to code. From specifying the type of pool and spa systems to detailing the requirements for heaters, including thermal efficiency and the presence of an on-off switch, this form covers it all. Additionally, it sets the standards for pool and spa system installation, pump sizing, flow rate specifications, and even the minutiae of pipe installations and filter requirements. The responsible person's declaration at the end of the form not only attests to the truthful completion of the specifications but also signifies adherence to all applicable local and state regulations, promising a safe and enjoyable swimming experience. This document is not just a form but a gateway to understanding the intricate balance between enjoying residential swimming facilities and maintaining an energy-efficient, safe, and legally compliant installation.

QuestionAnswer
Form NameCf2R Plb 03 E Form
Form Length2 pages
Fillable?No
Fillable fields0
Avg. time to fill out30 sec
Other names2016 cfr plb, blank cf2r, plb cf2r 03 e, e 03 plb cf2r

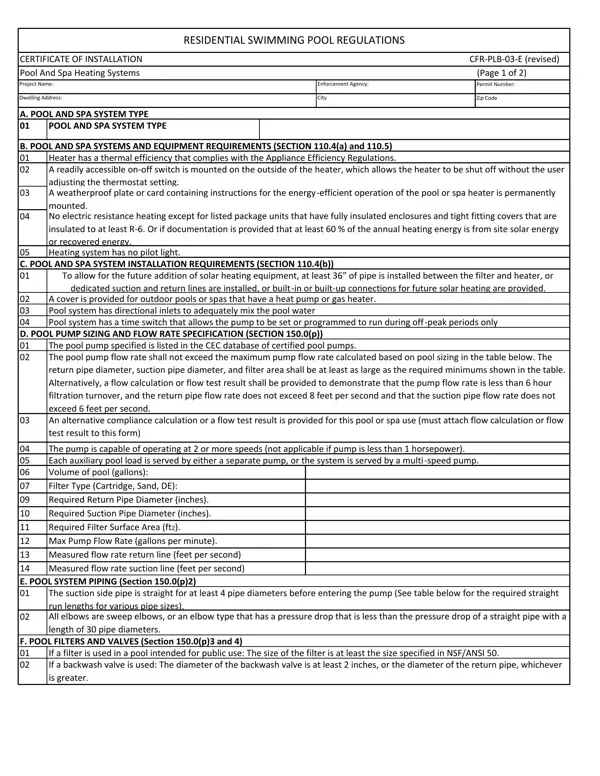

Form Preview Example



RESIDENTIAL SWIMMING POOL REGULATIONS





CERTIFICATE OF INSTALLATION

CFRPLB03E (revised)

Pool And Spa Heating Systems

(Page 1 of 2)

Project Name:

Enforcement Agency:

Permit Number:

Dwelling Address:

City

Zip Code

A. POOL AND SPA SYSTEM TYPE

01

POOL AND SPA SYSTEM TYPE









B. POOL AND SPA SYSTEMS AND EQUIPMENT REQUIREMENTS (SECTION 110.4(a) and 110.5)

01

Heater has a thermal efficiency that complies with the Appliance Efficiency Regulations.

02

A readily accessible onoff switch is mounted on the outside of the heater, which allows the heater to be shut off without the user



adjusting the thermostat setting.

03

A weatherproof plate or card containing instructions for the energyefficient operation of the pool or spa heater is permanently



mounted.

04No electric resistance heating except for listed package units that have fully insulated enclosures and tight fitting covers that are insulated to at least R6. Or if documentation is provided that at least 60 % of the annual heating energy is from site solar energy

or recovered energy.

05 Heating system has no pilot light.

C. POOL AND SPA SYSTEM INSTALLATION REQUIREMENTS (SECTION 110.4(b))

01 To allow for the future addition of solar heating equipment, at least 36” of pipe is installed between the filter and heater, or dedicated suction and return lines are installed, or builtin or builtup connections for future solar heating are provided.

02A cover is provided for outdoor pools or spas that have a heat pump or gas heater.

03Pool system has directional inlets to adequately mix the pool water

04Pool system has a time switch that allows the pump to be set or programmed to run during offpeak periods only

D. POOL PUMP SIZING AND FLOW RATE SPECIFICATION (SECTION 150.0(p))

01The pool pump specified is listed in the CEC database of certified pool pumps.

02The pool pump flow rate shall not exceed the maximum pump flow rate calculated based on pool sizing in the table below. The return pipe diameter, suction pipe diameter, and filter area shall be at least as large as the required minimums shown in the table. Alternatively, a flow calculation or flow test result shall be provided to demonstrate that the pump flow rate is less than 6 hour filtration turnover, and the return pipe flow rate does not exceed 8 feet per second and that the suction pipe flow rate does not exceed 6 feet per second.

03An alternative compliance calculation or a flow test result is provided for this pool or spa use (must attach flow calculation or flow test result to this form)

04The pump is capable of operating at 2 or more speeds (not applicable if pump is less than 1 horsepower).

05Each auxiliary pool load is served by either a separate pump, or the system is served by a multi speed pump.

06Volume of pool (gallons):

07Filter Type (Cartridge, Sand, DE):

09Required Return Pipe Diameter (inches).

10Required Suction Pipe Diameter (inches).

11Required Filter Surface Area (ft2).

12Max Pump Flow Rate (gallons per minute).

13Measured flow rate return line (feet per second)

14Measured flow rate suction line (feet per second)

E. POOL SYSTEM PIPING (Section 150.0(p)2)

01The suction side pipe is straight for at least 4 pipe diameters before entering the pump (See table below for the required straight



run lengths for various pipe sizes).

02

All elbows are sweep elbows, or an elbow type that has a pressure drop that is less than the pressure drop of a straight pipe with a



length of 30 pipe diameters.

F. POOL FILTERS AND VALVES (Section 150.0(p)3 and 4)

01 If a filter is used in a pool intended for public use: The size of the filter is at least the size specified in NSF/ANSI 50.

02If a backwash valve is used: The diameter of the backwash valve is at least 2 inches, or the diameter of the return pipe, whichever is greater.

The responsible person’s signature on this compliance document affirms that all applicable requirements in this table have been met.

RESPONSIBLE PERSON'S DECLARATION STATEMENT

I certify the following under penalty of perjury, under the laws of the State of California:

1.The information provided on this Certificate of Installation is true and correct.

2.I am eligible under Division 3 of the Business and Professions Code in the applicable classification to accept responsibility for the system design, construction, or installation of features, materials, components, or manufactured devices for the scope of work identified on this Certificate of Installation, and attest to the declarations in this statement (responsible builder/installer), otherwise I am an authorized representative of the responsible builder/installer.

3.The constructed or installed features, materials, components or manufactured devices (the installation) identified on this Certificate of Installation conforms to all applicable codes and regulations, and the installation conforms to the requirements given on the plans and specifications approved by the enforcement agency.

4.I reviewed a copy of the Certificate of Compliance approved by the enforcement agency that identifies the specific requirements for the scope of construction or installation identified on this Certificate of Installation, and I have ensured that the requirements that apply to the construction or installation have been met.

5.I will ensure that a registered copy of this Certificate of Installation shall be posted, or made available with the building permit(s) issued for the building, and made available to the enforcement agency for all applicable inspections. I understand that a registered copy of this Certificate of Installation is required to be included with the documentation the builder provides to the building owner at occupancy

Responsible Builder/Installer Name:

Responsible Builder/Installer Signature:

Company Name: (Installing Subcontractor or General Contractor or Builder/Owner)

Position With Company (Title):

Address:

CSLB License:

City/State/Zip:

Phone

Date Signed:

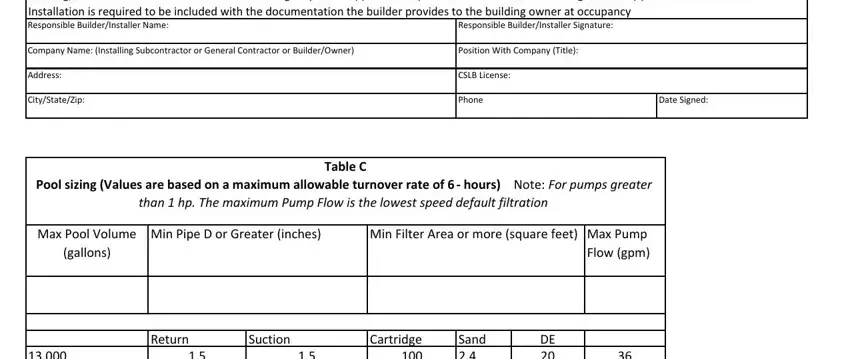

Table C







Pool sizing (Values are based on a maximum allowable turnover rate of 6 ‐ hours)

Note: For pumps greater



than 1 hp. The maximum Pump Flow is the lowest speed default filtration























Max Pool Volume



Min Pipe D or Greater (inches)





Min Filter Area or more (square feet)

Max Pump

(gallons)

















Flow (gpm)

































































Return

Suction





Cartridge

Sand

DE



13,000



1.5

1.5





100

2.4

20

36

17,000



1.5

2





130

3.1

25

47

21,000



2

2





160

3.9

30

58

28,000



2

2.5





210

5.2

40

78

42,000



2.5

3





320

7.8

60

117

48,000



3

3





360

8.9

70

133





Table D















Pipe Diameter/Pipe Length













Pipe Diameter

Required Pipe Length leading













(inch)

into pump (inch)















1.5

6















2

8















2.5

10















3

12















How to Edit Cf2R Plb 03 E Form Online for Free

Handling PDF files online can be quite easy with this PDF tool. You can fill out cf2r plb 01 e dynamic form here with no trouble. To have our editor on the forefront of practicality, we strive to integrate user-oriented features and enhancements regularly. We are routinely happy to get suggestions - play a pivotal role in reshaping PDF editing. For anyone who is looking to begin, here's what it's going to take:

Step 1: Simply hit the "Get Form Button" in the top section of this site to see our pdf file editor. There you'll find everything that is needed to fill out your file.

Step 2: After you access the PDF editor, you'll see the form ready to be completed. Apart from filling in different fields, it's also possible to perform other actions with the form, namely adding any textual content, editing the original textual content, adding images, putting your signature on the PDF, and more.

This document will need particular info to be entered, therefore be certain to take your time to fill in exactly what is asked:

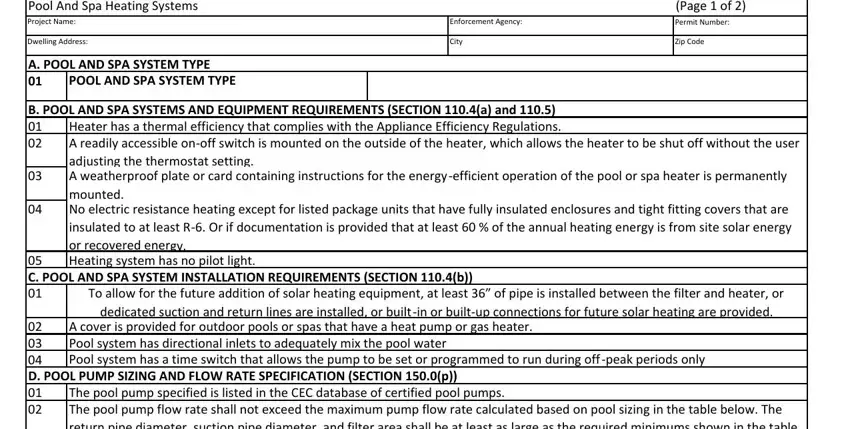

1. It is critical to complete the cf2r plb 01 e dynamic form accurately, hence take care when working with the parts containing these blanks:

Step # 1 of submitting folsom cf2r plb 03 e

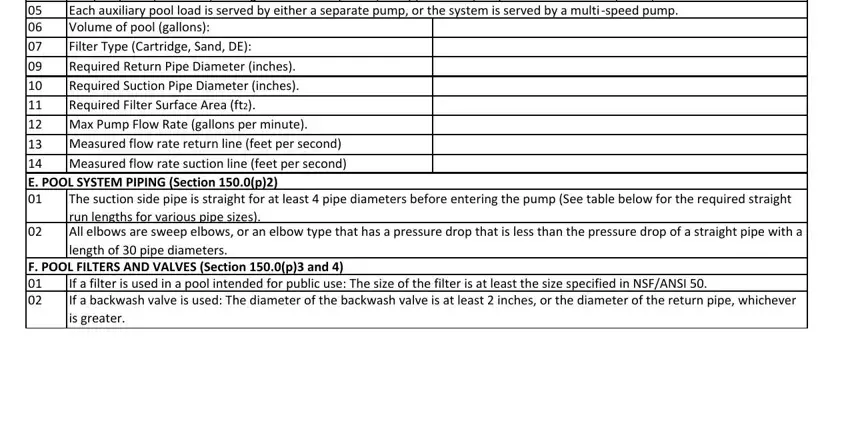

2. Just after the last part is done, proceed to enter the applicable information in these: The pool pump specified is listed, E POOL SYSTEM PIPING Section p, The suction side pipe is straight, F POOL FILTERS AND VALVES Section, and If a filter is used in a pool.
